Product form

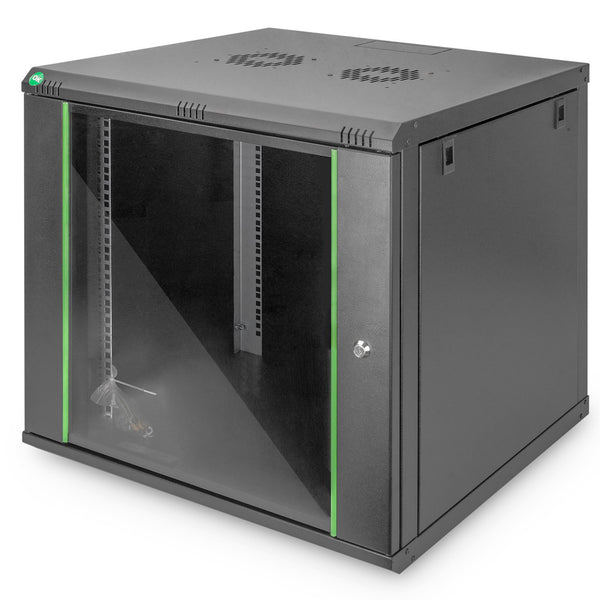

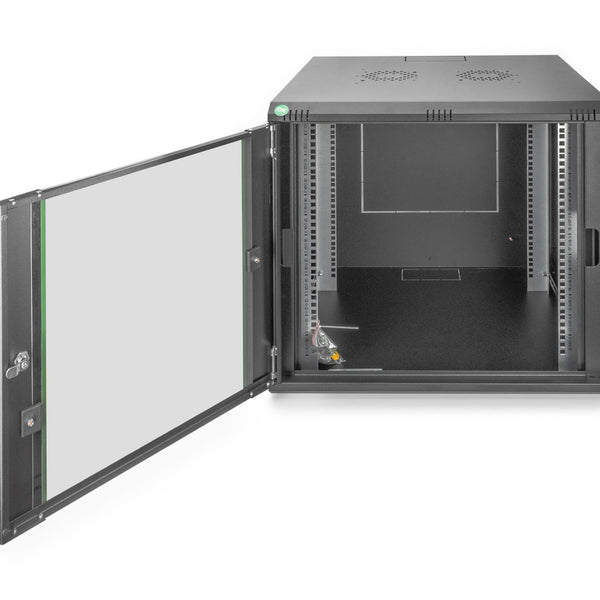

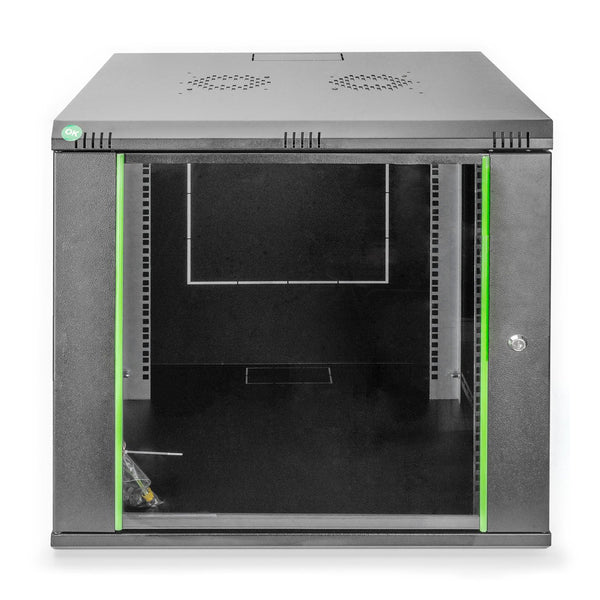

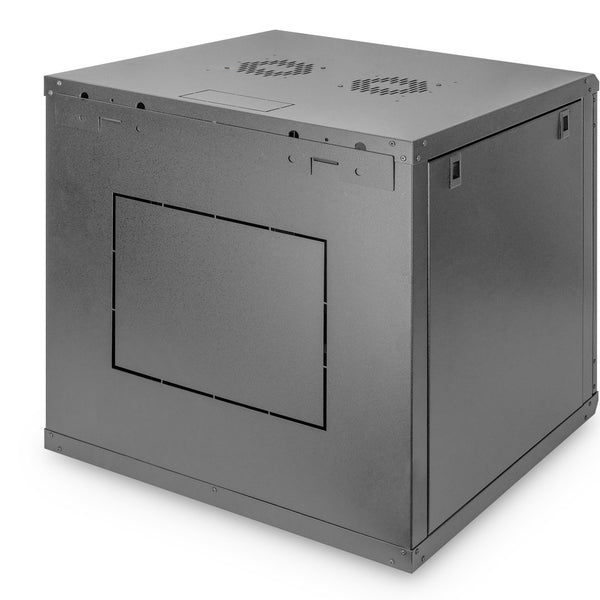

9U wall cabinet 478x600x600 mm, color black (RAL 9005)

199,65 Incl. VAT165,00 Excl. VAT

Delivered Tuesday

Shipped today? Order within: May 31, 2026 21:00:00 +0200

SKU: DN-19-09U-6/6-EC-SW

Need a larger quantity?

Request quote

✅ Ordered Monday to Friday before 9 PM = delivered tomorrow
✅ 15 years of expertise in network cables
✅ 250,000+ satisfied customers
✅ Pay up to 30 days later
✅ Shipping from €3.49
✅ 2-year warranty

Additional products

1U metal cable management bar with 5 brackets
11,76 Incl. VAT9,72 Excl. VAT
M6 cage nuts and rings 20 pcs zwart
6,66 Incl. VAT5,50 Excl. VAT
19 inch 2U shelf for racks from 450 mm depth 88.5x483x352 mm, up to 25 kg, black (RAL 9005)
33,64 Incl. VAT27,80 Excl. VAT
Cat6a Patch Panel 24 Port RJ45 Shielded
2 reviews
83,76 Incl. VAT69,22 Excl. VAT
M6 cage nuts and rings 50 pcs black
15,67 Incl. VAT12,95 Excl. VAT

TECHNICAL DETAILS

Safety class rating IP20
Lockable safety glass door with steel frame
210° by opening angle
1-point locking mechanism on the front door
483 mm (19") profile rails mounted on the front and rear side inside of the rack, galvanized
483 mm (19") profile rails are adjustable in depth and with height unit marking
0.8 - 1.2 mm strong sheet steel with high load capacity, powder coated
Cable entry on the rear side, roof and base (pre-punched breakouts)
Roof is prepared for fan units (punched out entries)
Ventilation slots for active and passive ventilation and exhausting
4 earthing points (base, side panel and front door) with protection cap
Equipment mounting depth min.-max.: 320 - 450 mm
Cabinet type: Wall mounting cabinet
Color: black, RAL 9005
Depth: 600mm
Front door: Glass door, single opening
Load capacity: 60 kg
Side panels: Both sides
Units: 9
Width: 600mm
IP protection class: IP20
Mounted: yes
