UTP CAT6 cable rigid 305M (Eca) 100% copper
-
Product description
Please note: the correct connectors for this item can be found HERE .

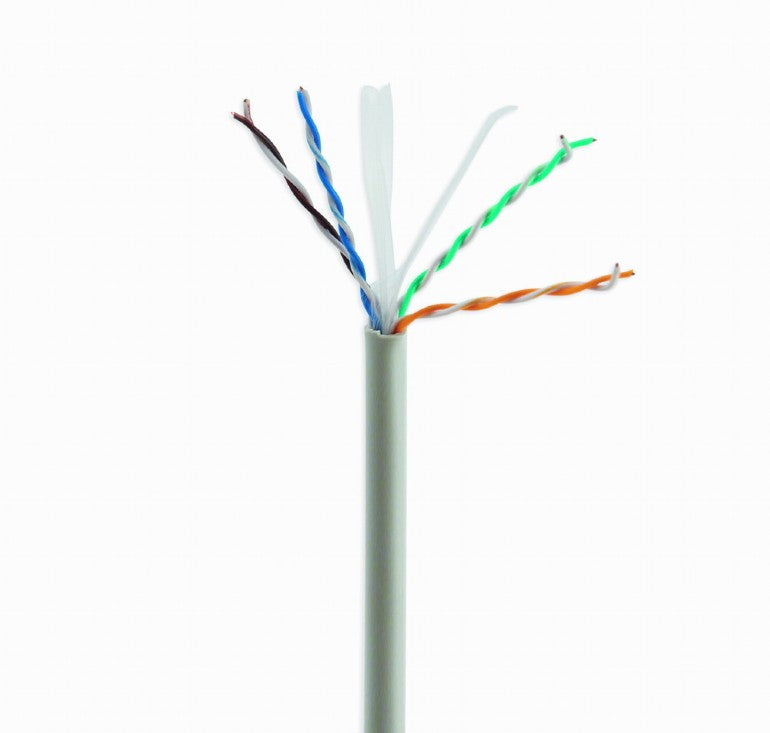

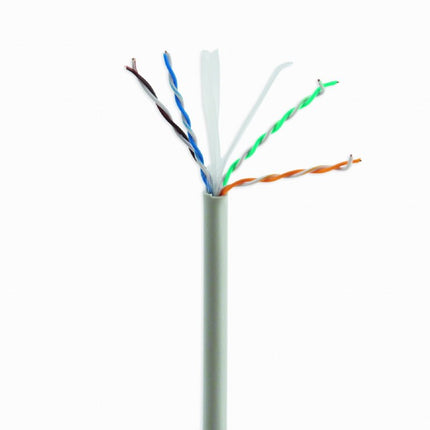

UTP CAT6 cable, rigid, 305M, 100% copper. The cable has an AWG value of 24 and a PVC jacket. Suitable for networks up to 1Gbit/s with a bandwidth of 250MHz. It comes in a handy Reelex pull-out box without molded connectors, ideal for running the cable through empty conduits. Thanks to the 100% copper cores, this cable is suitable for PoE (Power over Ethernet). A rigid cable is always used when working with wall sockets, patch panels, or LSA strips in general.
| Unshielded twisted pair (UTP) LAN cable |
| Category 6 |
| Conductor material: AWG24 solid copper |
| Length: 1000 ft (305 m) |

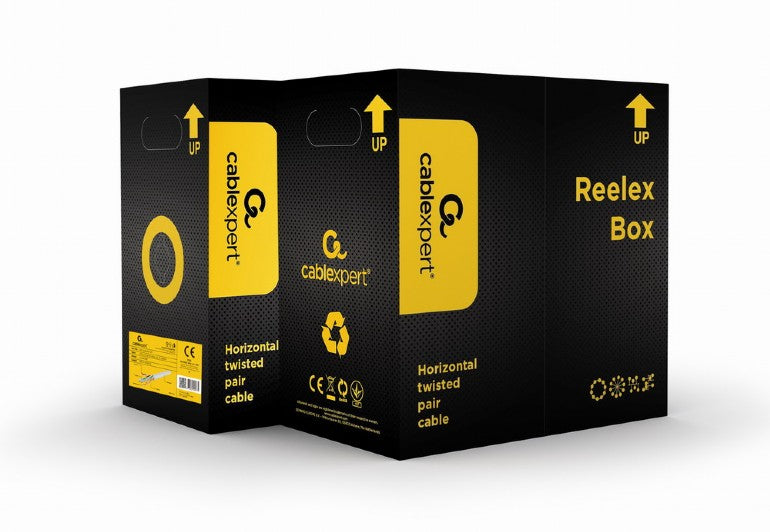

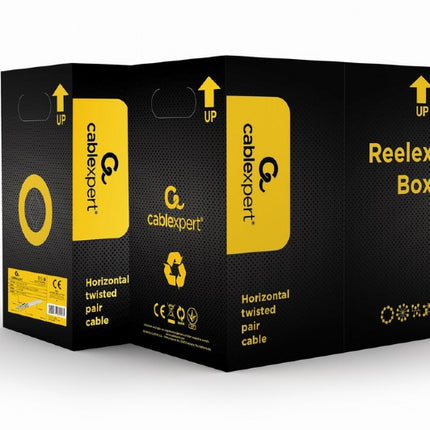

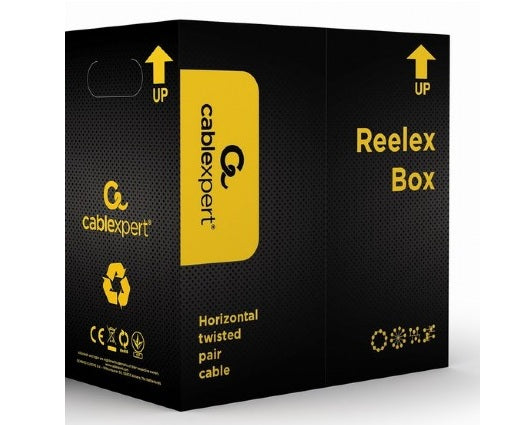

| Package: Reelex box |
| Color: gray |
| Conductor resistance (max): 90 ohm/ 1000m |
| Insulation resistance (min): 5M ohm/km |
| Pair-to-Ground capacitance: < 330PF / 100m |
| Characteristic impedance: < 100Ohm (+/- 15) |
| Transport and storage temperature: 0 - 60 degrees |
| Operating temperature: -20 - 70 degrees |
| Working distance: <100m |
