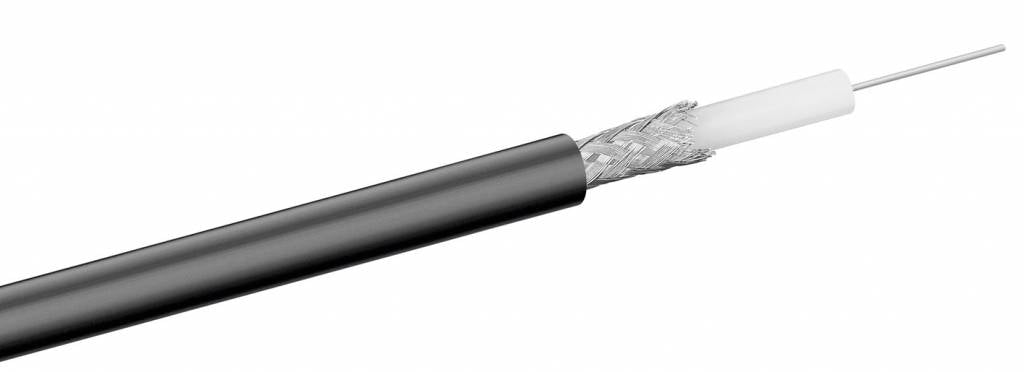

RG59 Coaxial Cable 2x Shielded 100M
-
Specifications
-
Product description
| Connection cable length: | |
| Color | Black |
| Shielding: | |
| Inner conductor material | CCS |
| Conductor Diameter: | |
| Type 1 Shielding: | |
| Type 2 Shielding: | |
| Outer Diameter: | |
| Type Cable | RG 59 |
| Impedance | 75 Ω |
| Type 3 Shielding: | |
Show more
Flexible and 6.2 mm thin cable for universal applications (75 Ohm)
double signal shield for adequate protection over long distances
inner conductor of 0.6 mm thick, copper clad steel
suitable for all popular BNC/N/UHF/SMA connectors
Fire class according to DIN EN 13501-6 Eca
Cable type RG 59
Dielectric diameter 3.7
Cable sheath diameter (approx.) 6.2 mm
Inner conductor material CCS 30 (30% copper-clad steel)
Cable length 100 m
Number of shieldings 2 x
Type 1, shielding foil (aluminum)
Type 2, shielding braid (aluminum) 128x
Impedance 75 ?
Consumption Unit 1 pc. coil
Operating temperature from -20 ﾰC
Operating temperature up to 75 ﾰC
Weight 4146 g
