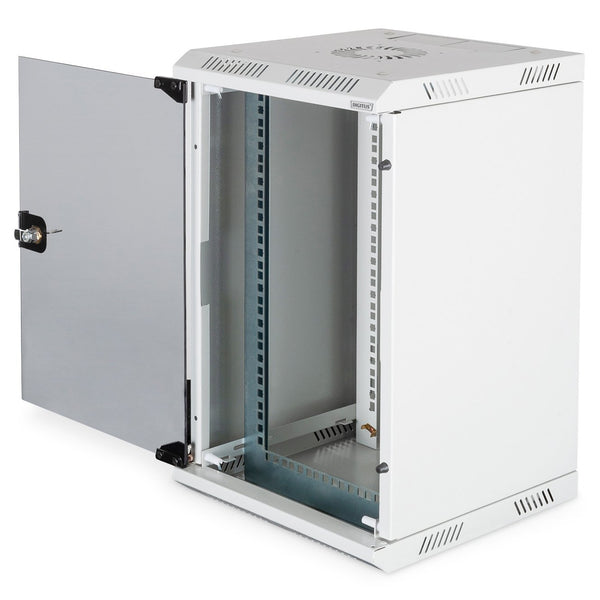

Combi wall mounting cabinet 10U horizontal (10"), 5U vertical (19"), gray
-
Product description
Technical details

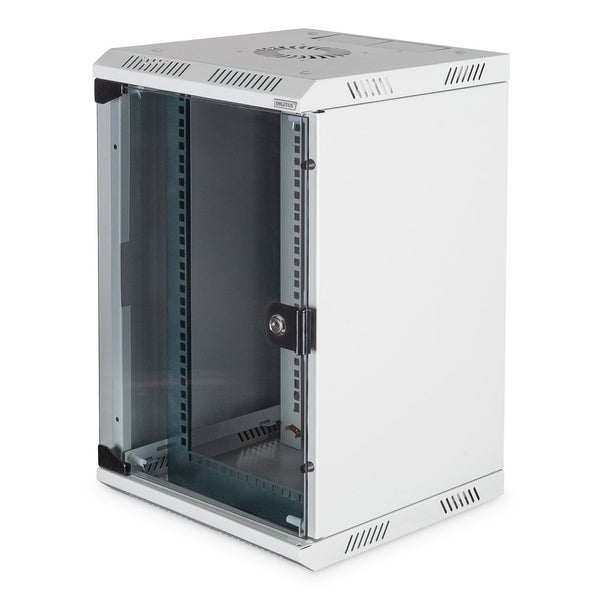

- Lockable safety glass door with 200° door opening angle
- 1-point locking on the front door
- Round profile frame mounted at the front inside the housing, galvanized
- Maximum installation depth: approx. 260 mm to rear panel; approx. 220 mm to rear profile perforation
- 1.1 - 1.5 thick sheet steel with a high load capacity, powder-coated

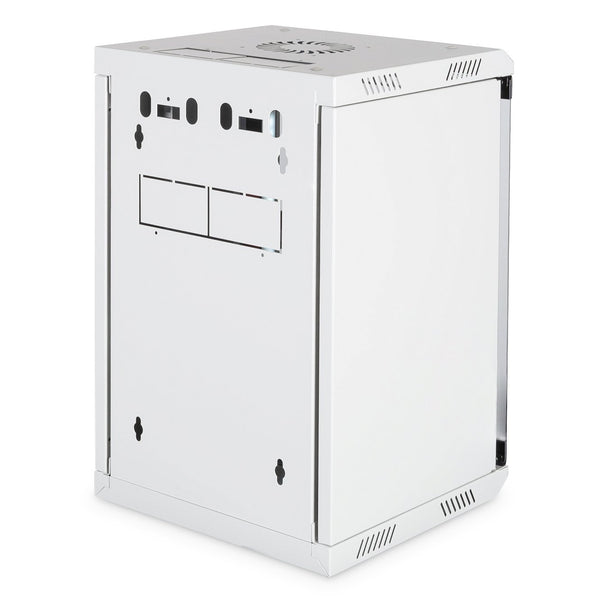

- Pre-punched cable entries in the roof, floor and rear
- Ventilation slots for active and passive ventilation
- Load capacity of the profile rails: 30 kg
- Cabinet type: Wall mounted cabinet
- Colour: light grey, RAL 7035
- Depth: 350 mm
- Front door: Glass door, single opening
- Load capacity: 30 kg
- Side panels: Both sides
- Units: 10
- Width: 350mm
- IP protection class: IP20
- Mounted: yes
Package contents
- Mounting kit (screws, cage nuts, washers)
- 2 x key
