Product form

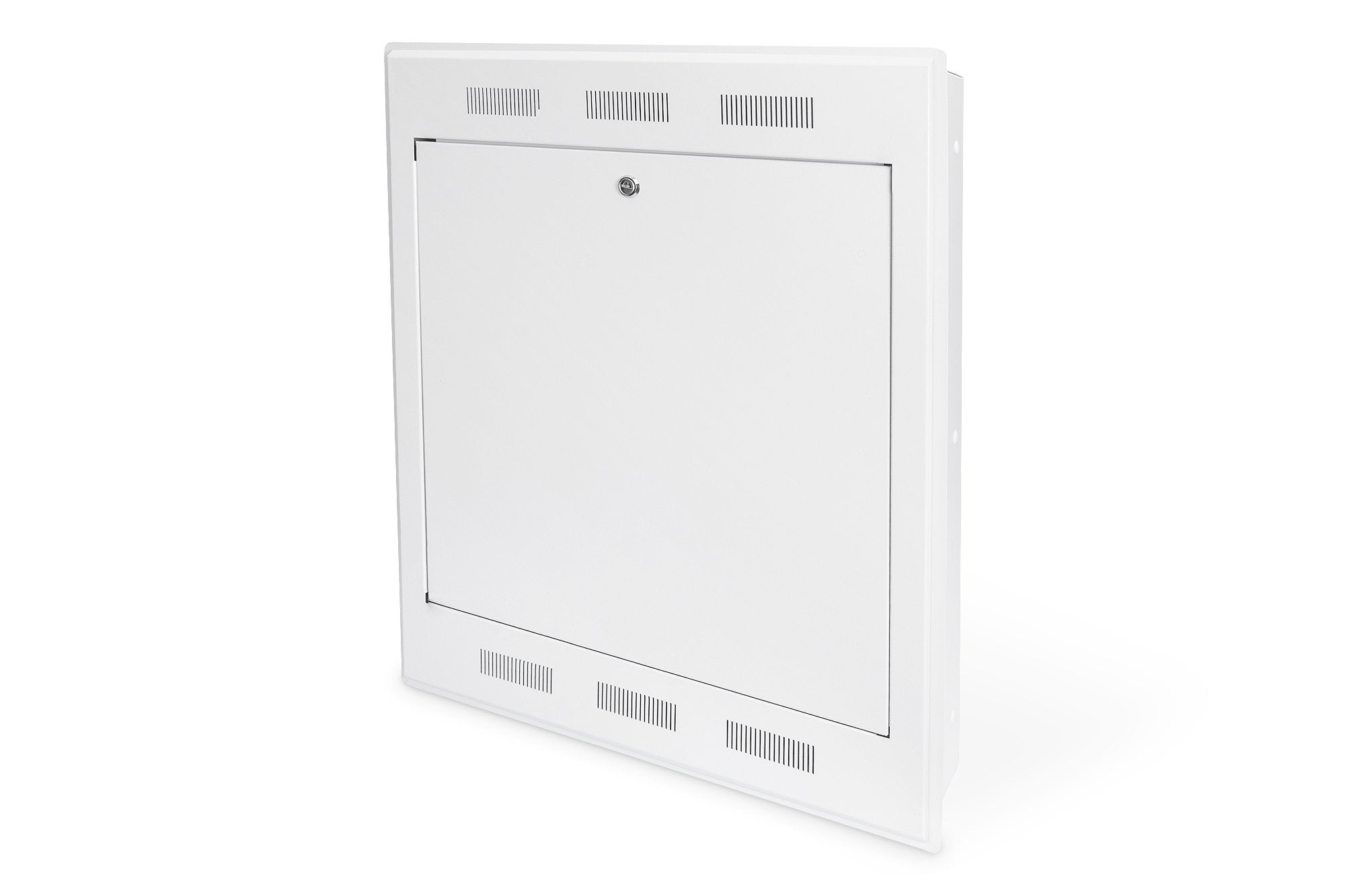

Built-in wall cabinet, tiltable 778x628x127 mm, 2U, color gray (RAL 7035)

Name: Built-in wall cabinet, tiltable 778x628x127 mm, 2U, color gray (RAL 7035)
Brand: ASSMANN Electronic GmbH
SKU: DN-19-WM-FLSH-127
Price: 332.75 EUR

332,75 Incl. VAT275,00 Excl. VAT

Entrega en 8 días laborables

SKU: DN-19-WM-FLSH-127

Need a larger quantity?

Request quote

✅ Ordered Monday to Friday before 9 PM = delivered tomorrow
✅ 15 years of expertise in network cables
✅ 250,000+ satisfied customers
✅ Pay up to 30 days later
✅ Shipping from €3.49
✅ 2-year warranty

Technical details

1.0 - 1.5 mm thick steel plate
2U usable space inside
Pre-punched cable entry in the center of the rear (216x216 mm)
Punched cable entries with plastic cover at the rear, top and bottom (145x70 mm)
Lockable front door with air ventilation units

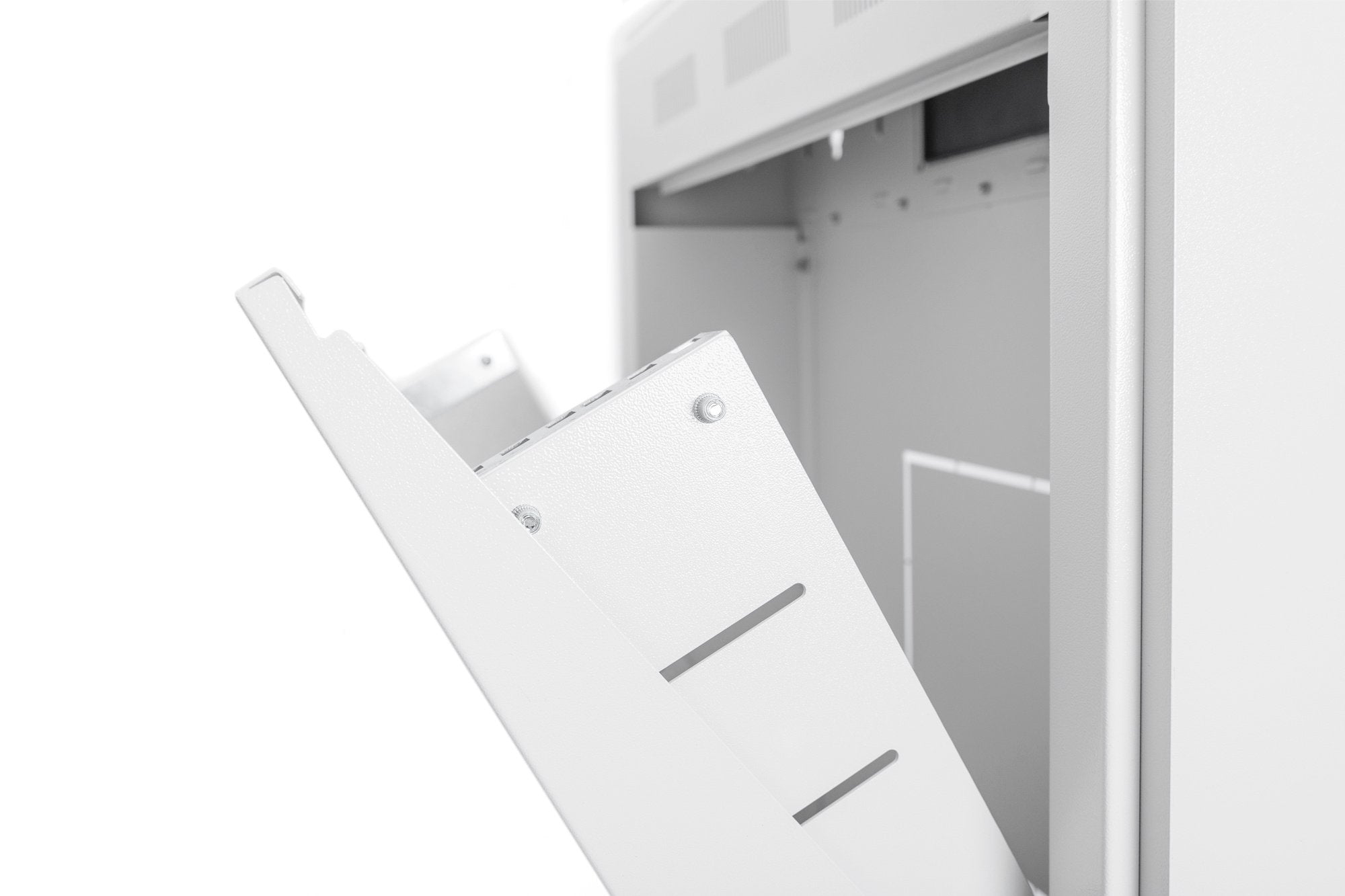

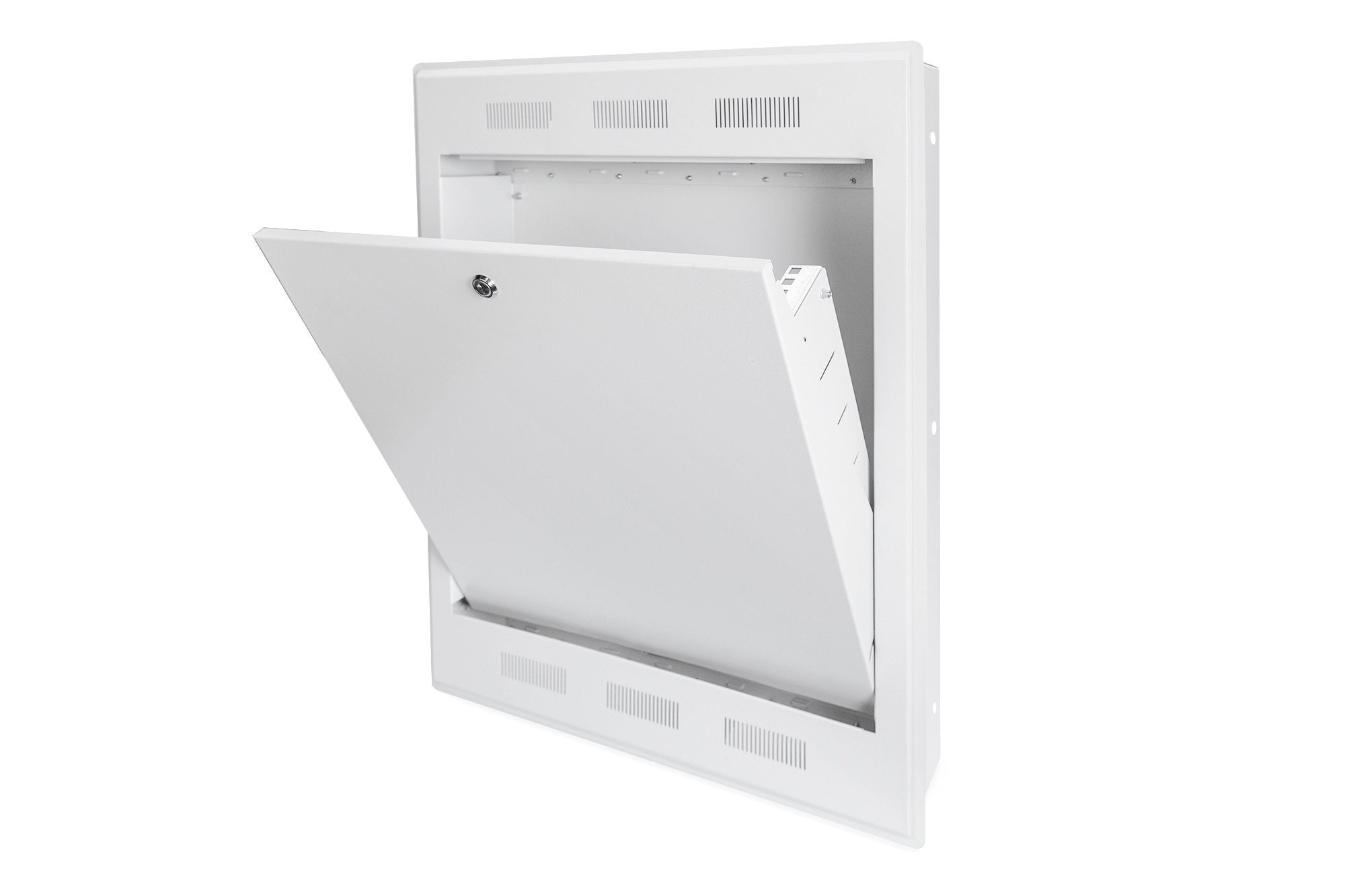

The front door can be swiveled outwards and has two stop functions (first stop at 25°, second stop at 115°)
Multiple cable attachment points for clear cable management
Inner surface dimensions (HxWxD): 750x600x116 mm
Max. installation height of equipment inside: 402 mm
Cabinet depth for flush wall mounting: 117 mm
Cabinet type: Wall cabinet, home automation
Colour: light grey, RAL 7035
Depth: 127mm
Front door: Steel door, closed, single opening
Load capacity: 100 kg
Side panels: Both sides
Units: 2
Width: 628mm
IP protection class: IP20
Mounted: yes
