Product form

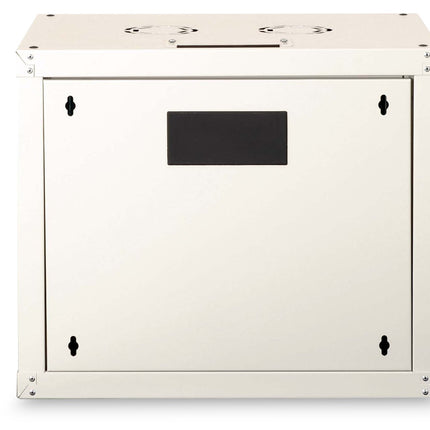

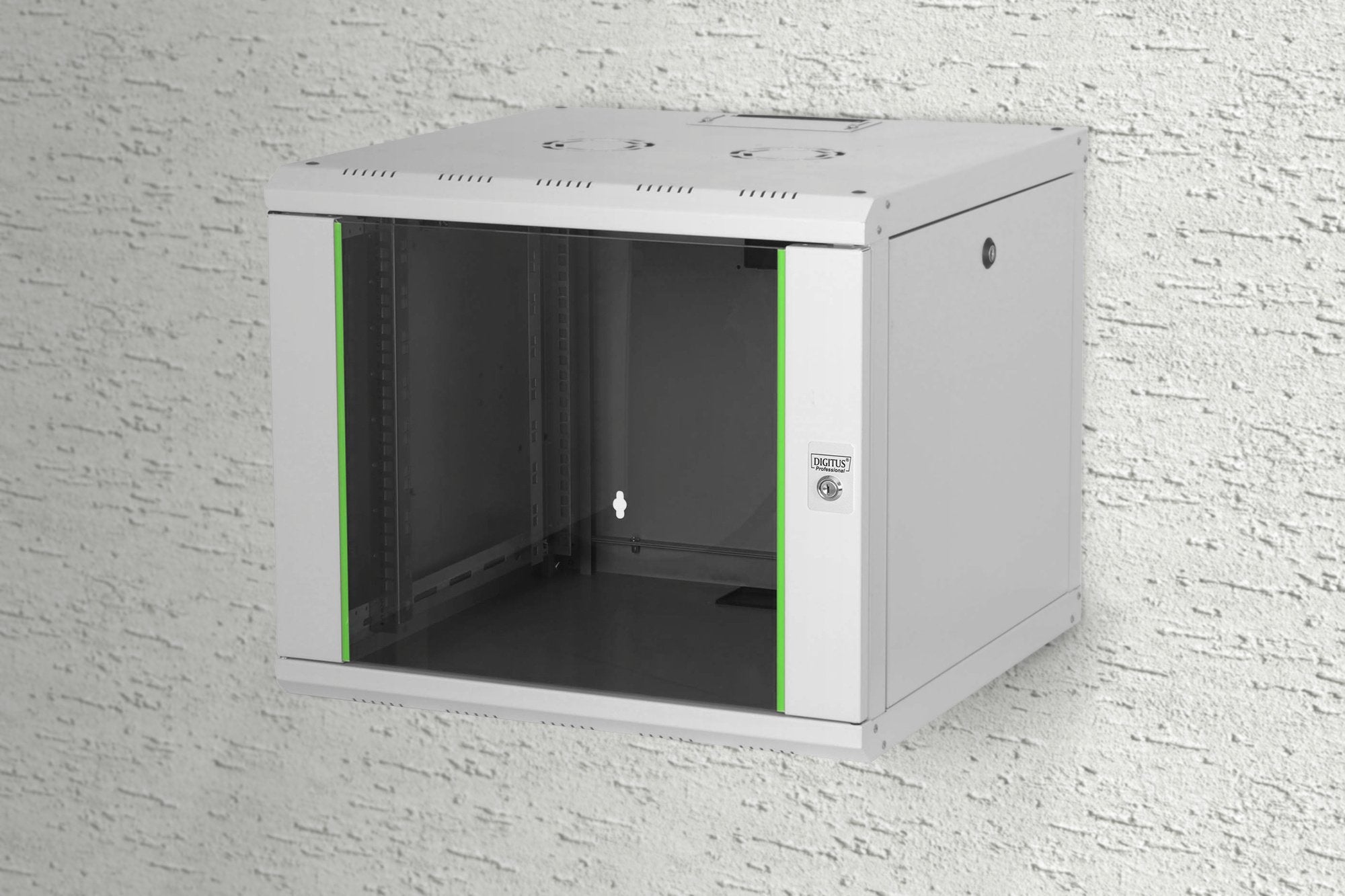

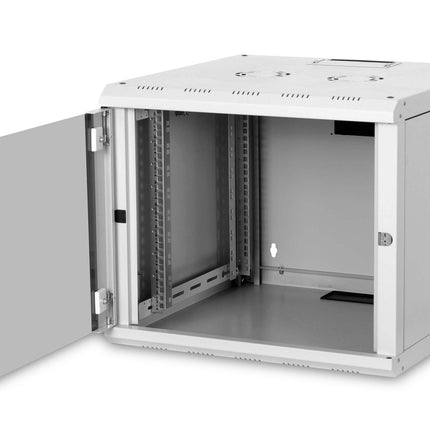

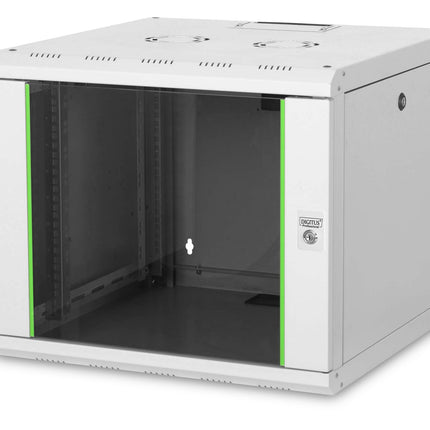

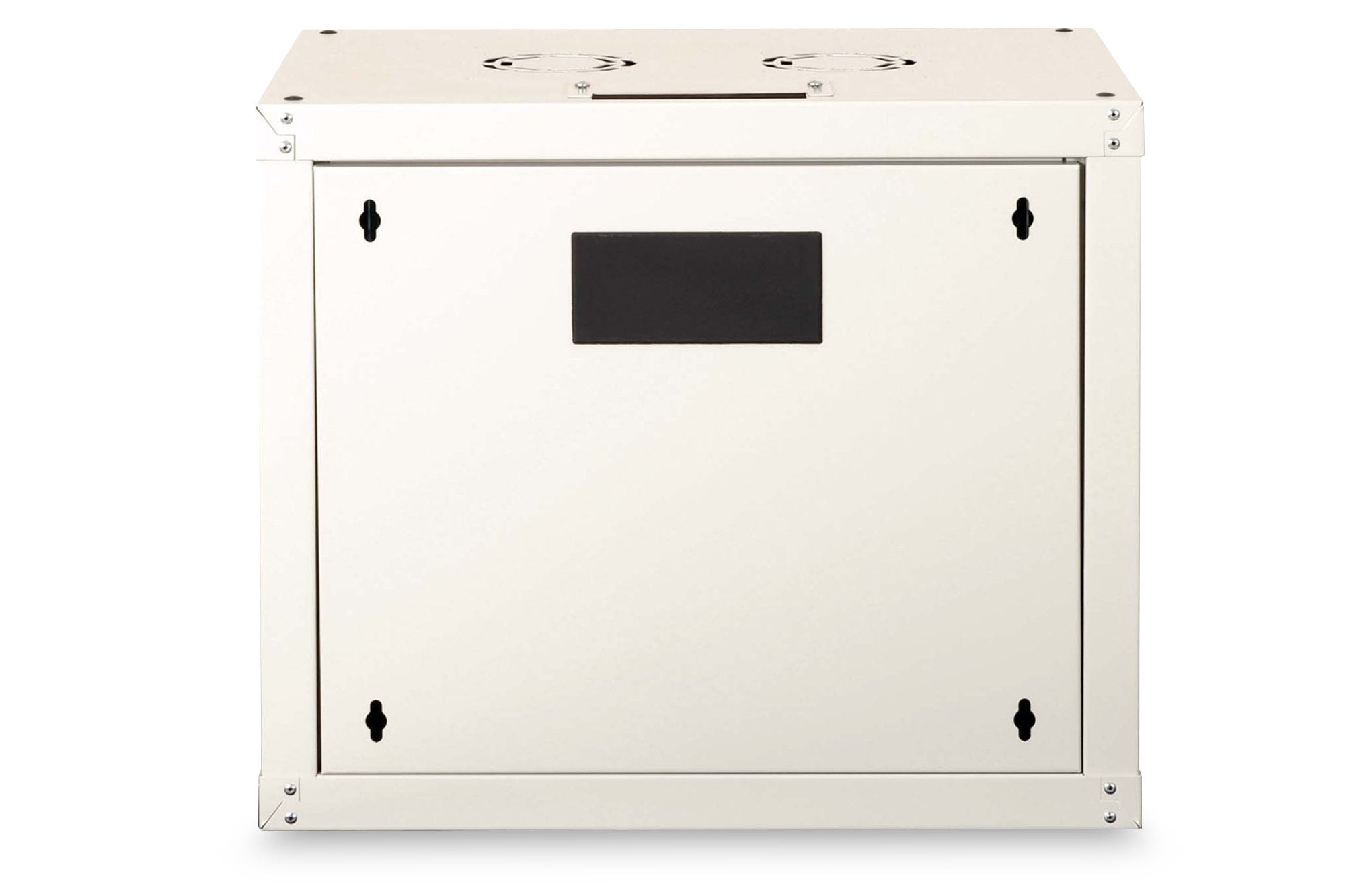

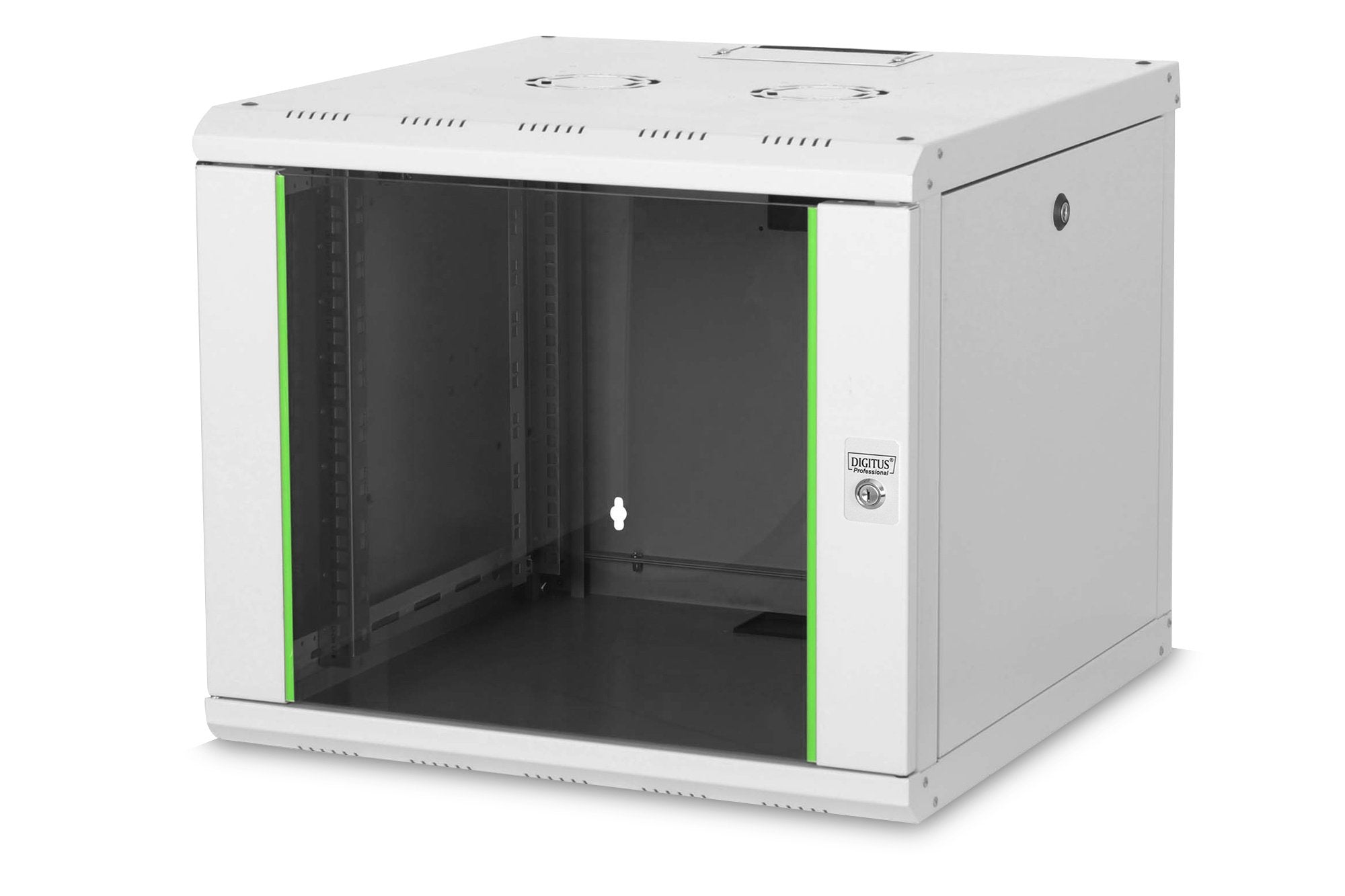

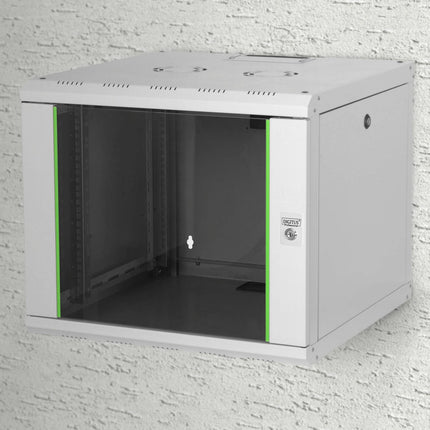

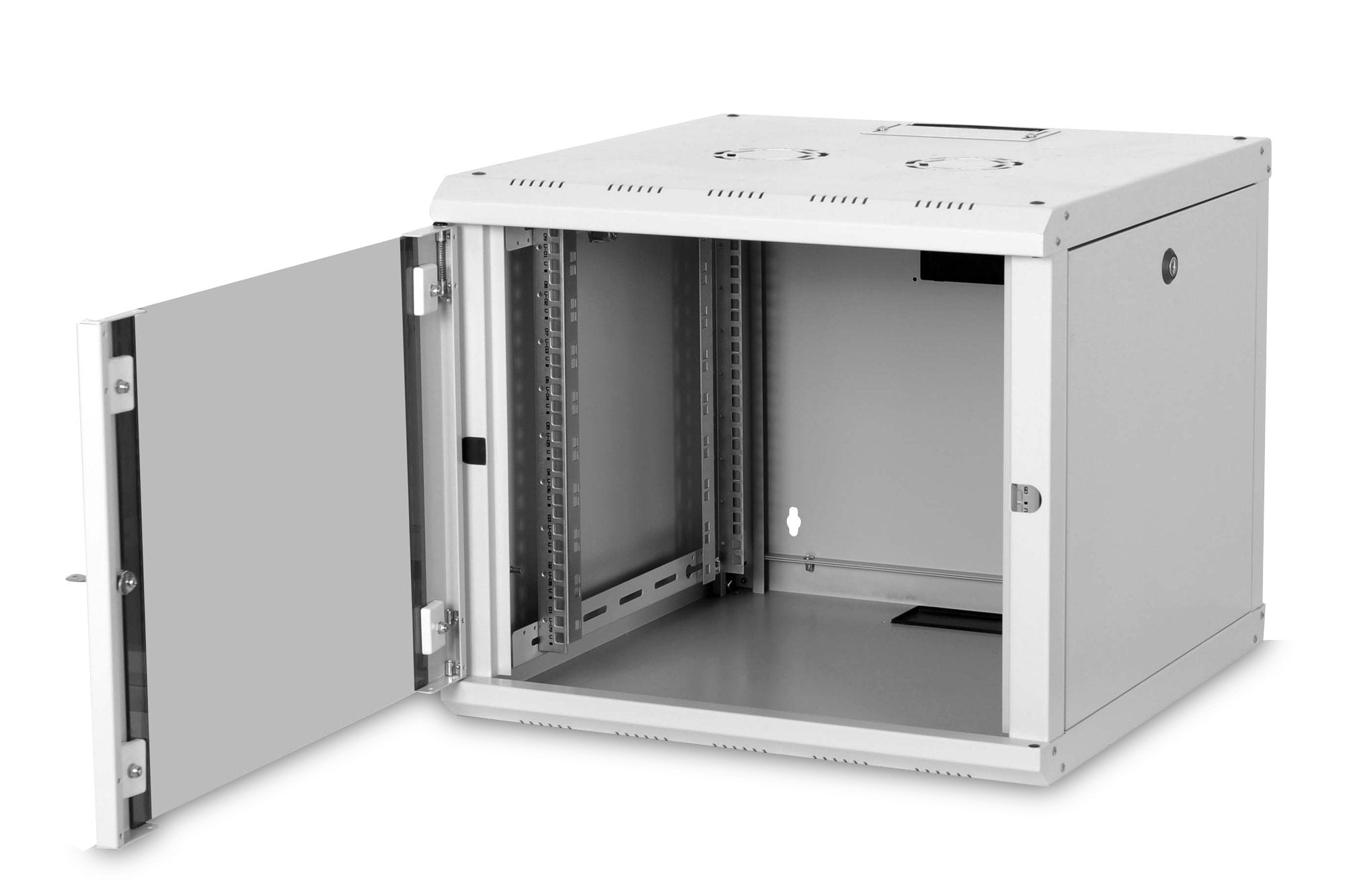

9U wall cabinet, Unique 600x600x509 mm, color light gray (RAL 7035)

Name: 9U wall cabinet, Unique 600x600x509 mm, color light gray (RAL 7035)
Brand: ASSMANN Electronic GmbH
SKU: DN-19-09U-6/6
Price: 263.77 EUR

263,77 Incl. VAT217,99 Excl. VAT

Entrega en 8 días laborables

SKU: DN-19-09U-6/6

Need a larger quantity?

Request quote

✅ Ordered Monday to Friday before 9 PM = delivered tomorrow
✅ 15 years of expertise in network cables
✅ 250,000+ satisfied customers
✅ Pay up to 30 days later
✅ Shipping from €3.49
✅ 2-year warranty

Additional products

1U metal cable management bar with 5 brackets
11,76 Incl. VAT9,72 Excl. VAT
M6 cage nuts and rings 50 pcs
15,67 Incl. VAT12,95 Excl. VAT
1U extendable shelf for 600 mm deep racks 40x485x368 mm, up to 25 kg, light gray (RAL 7035)
62,92 Incl. VAT52,00 Excl. VAT
19 Inch 1U shelf for racks from 600 mm depth 44x482x400 mm, up to 15 kg, gray (RAL 7035)
27,95 Incl. VAT23,10 Excl. VAT
19 Inch 2U shelf for racks from 450 mm depth 88.5x483x352 mm, up to 25 kg, gray (RAL 7035)
30,01 Incl. VAT24,80 Excl. VAT
M6 cage nuts and rings 20 pcs
6,66 Incl. VAT5,50 Excl. VAT
Cat6a Patch Panel 24 Port RJ45 Shielded
2 reviews
83,76 Incl. VAT69,22 Excl. VAT

TECHNICAL DETAILS

Safety class IP20
Lockable safety glass door with steel frame
210° door opening angle
1-point locking mechanism on the front door
Side panels are lockable and removable
483 mm (19") profile rails mounted at the front and rear inside the rack, galvanized
483 mm (19") profile rails are depth-adjustable and equipped with height unit markings
Maximum installation depth: 450 mm
Cable entry at the rear and bottom with plastic cover and top with sliding cover
Roof is prepared for fan units (punched out entrances)
Ventilation slots for active and passive ventilation and extraction
Multiple grounding points for rack components
Incl. mounting kit (screws, cage nuts, washers)
Rack is fully assembled
Installation depth equipment min.-max.: 320-450 mm
Cabinet type: Wall mounted cabinet
Colour: light grey, RAL 7035
Depth: 600 mm
Front door: Glass door, single opening
Load capacity: 100 kg
Side panels: Both sides
Units: 9
Width: 600mm
IP protection class: IP20
Mounted: yes
