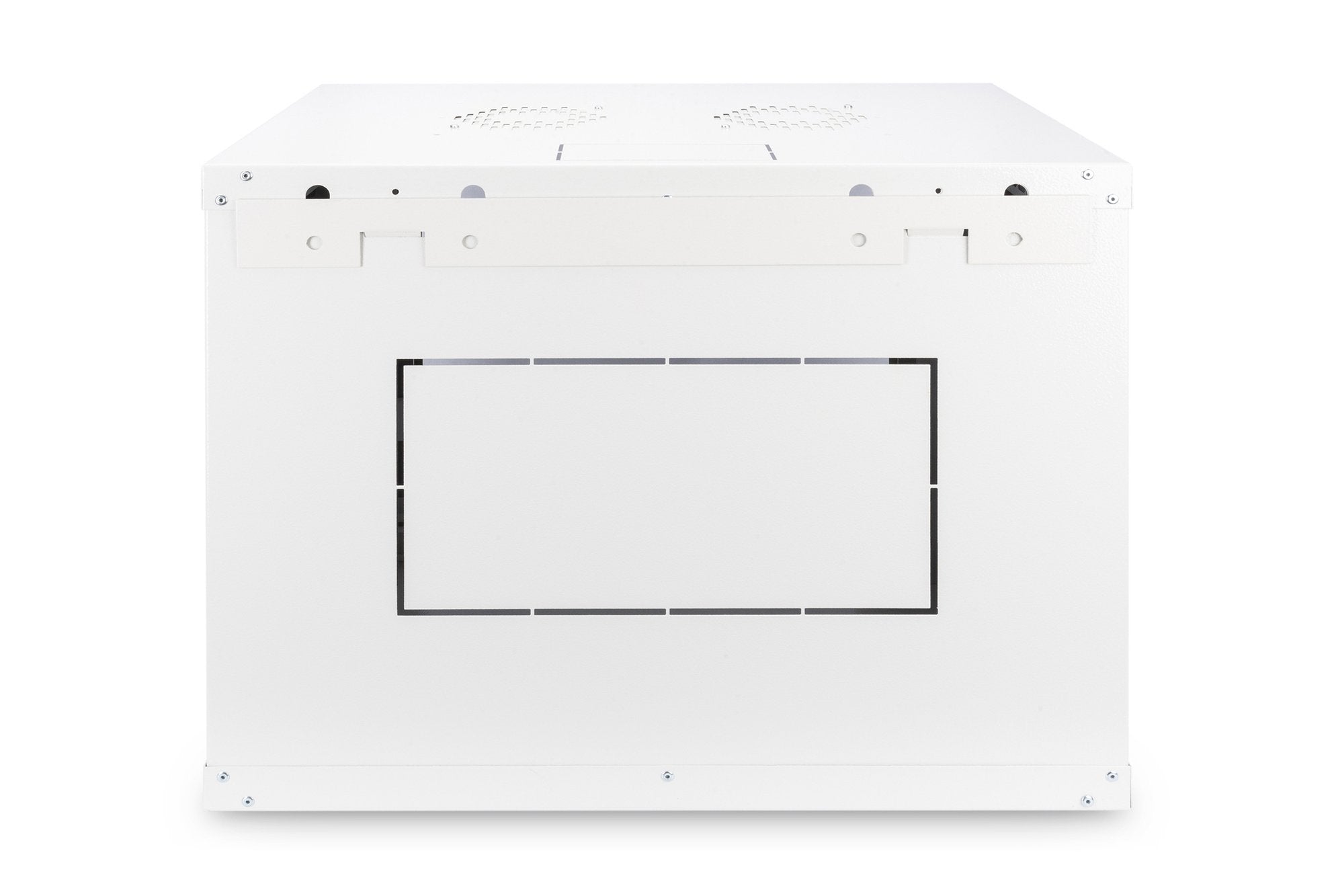

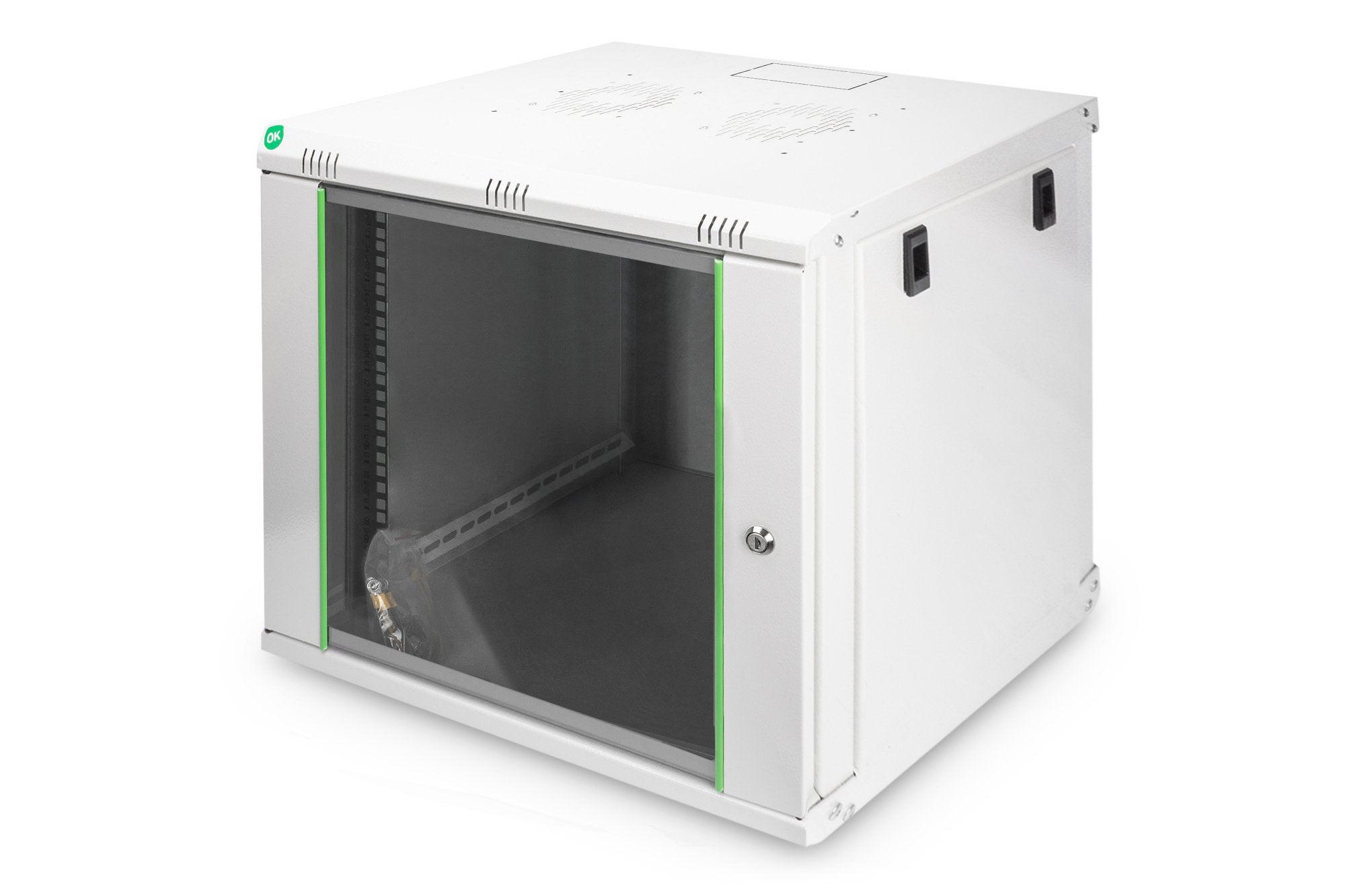

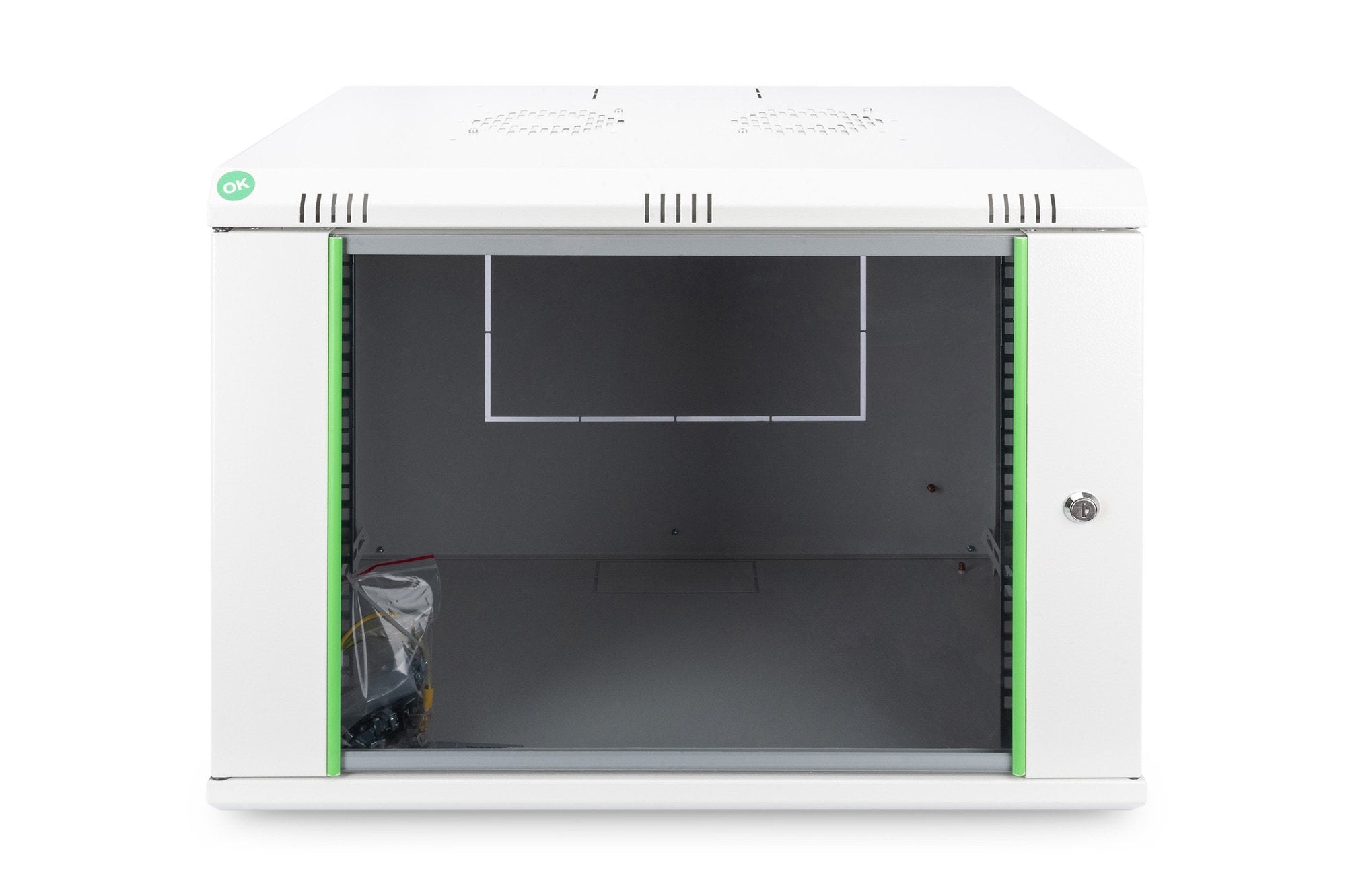

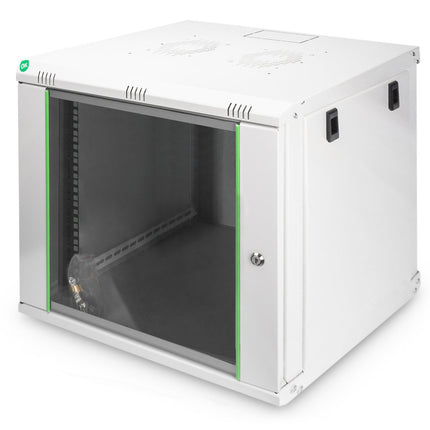

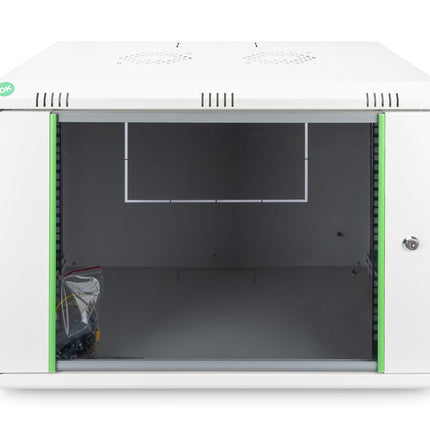

9U wall mounting cabinet, Dynamic 478x600x450 mm, color gray (RAL 7035)

Name: 9U wall mounting cabinet, Dynamic 478x600x450 mm, color gray (RAL 7035)
Brand: ASSMANN Electronic GmbH
SKU: DN-19-09-U-EC
Price: 151.24 EUR
Availability: InStock

151,24 Incl. VAT124,99 Excl. VAT

Delivered Tuesday

SKU: DN-19-09-U-EC

Need a larger quantity?

Request quote

✅ Ordered Monday to Friday before 9 PM = delivered tomorrow
✅ 15 years of expertise in network cables
✅ 250,000+ satisfied customers
✅ Pay up to 30 days later
✅ Shipping from €3.49
✅ 2-year warranty

Additional products

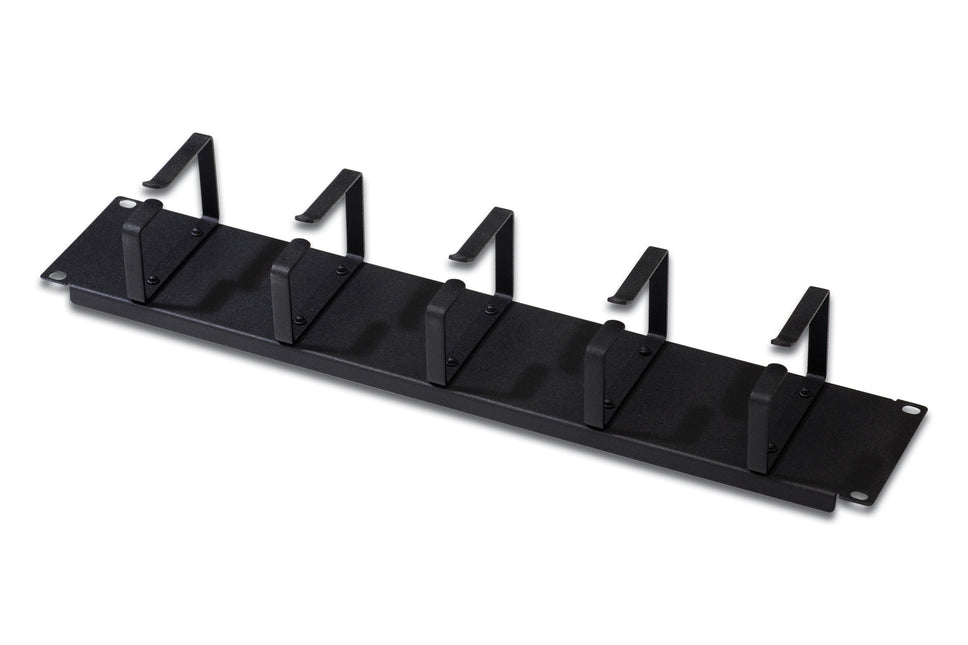

1U metal cable management bar with 5 brackets
11,76 Incl. VAT9,72 Excl. VAT
M6 cage nuts and rings 50 pcs
15,67 Incl. VAT12,95 Excl. VAT

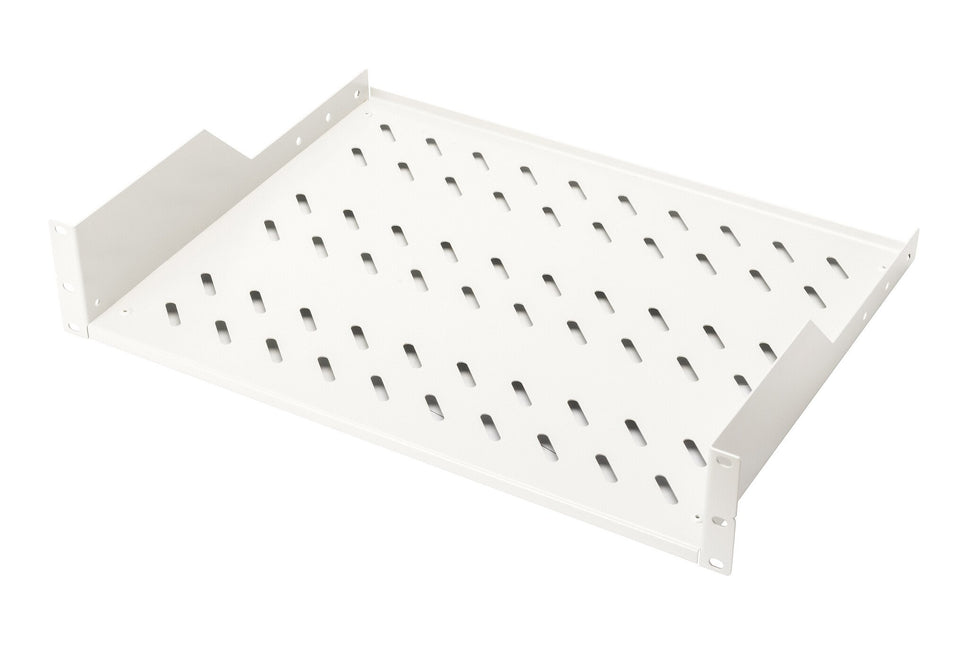

19 Inch 2U shelf for racks from 450 mm depth 88.5x483x352 mm, up to 25 kg, gray (RAL 7035)
30,01 Incl. VAT24,80 Excl. VAT

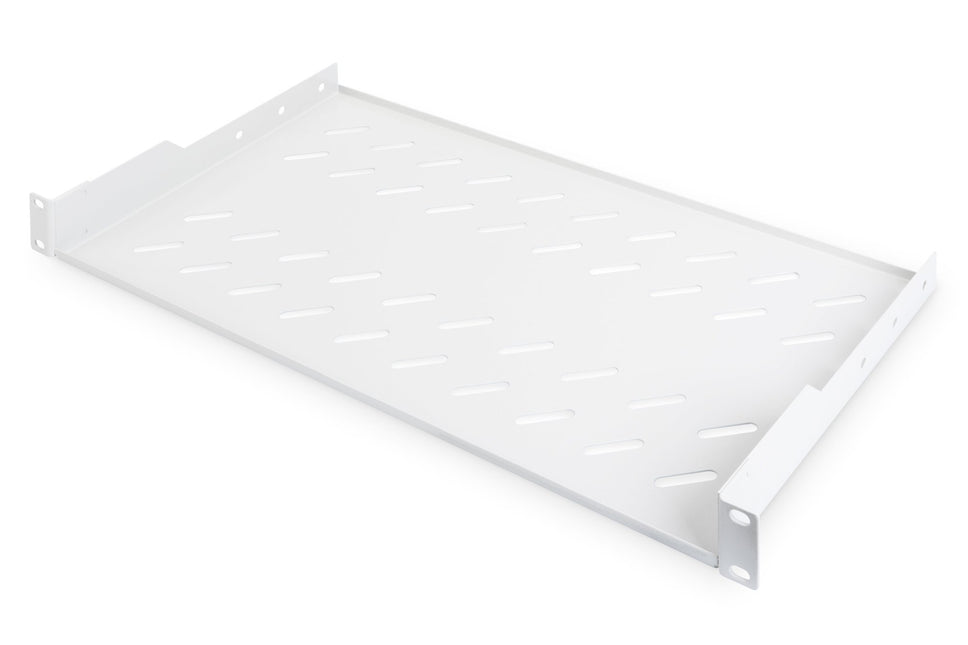

19 Inch 1U shelf for racks from 400 mm depth 45x482x250 mm, up to 15 kg, gray (RAL 7035)
24,20 Incl. VAT20,00 Excl. VAT
M6 cage nuts and rings 20 pcs
6,66 Incl. VAT5,50 Excl. VAT
Cat6a Patch Panel 24 Port RJ45 Shielded
2 reviews
83,76 Incl. VAT69,22 Excl. VAT

TECHNICAL DETAILS

Protection class IP20

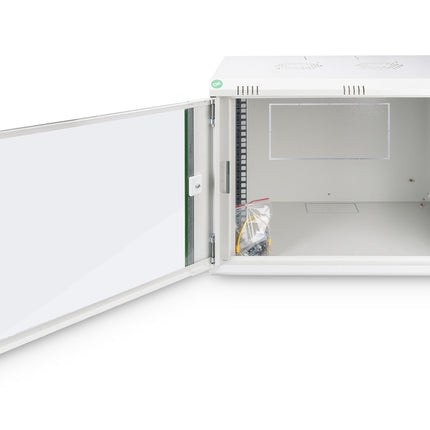

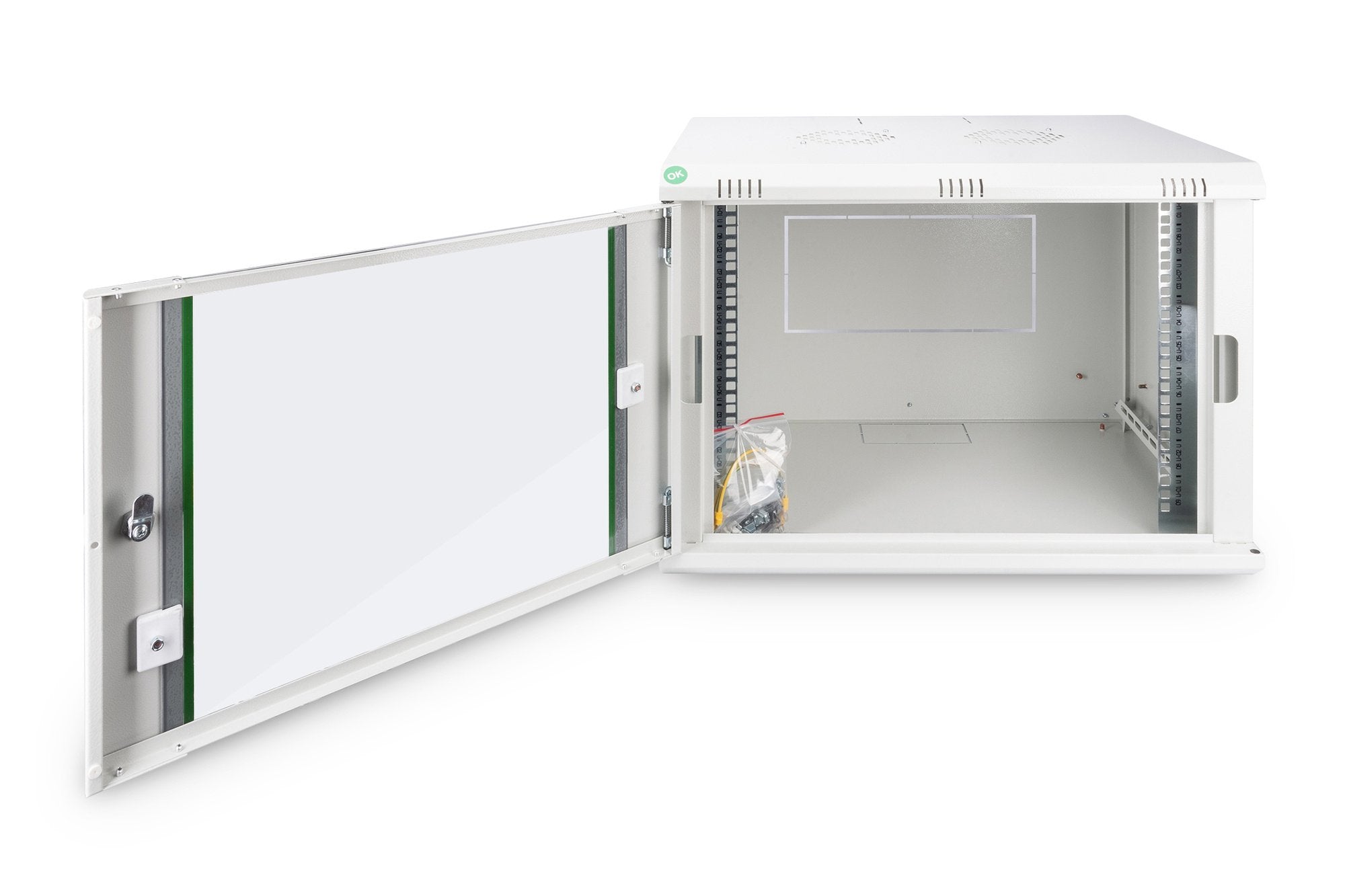

Lockable safety glass door with steel frame
235° door opening angle
1-point locking on the front door
483 mm (19") profile rails mounted at the front and rear in the housing, galvanized
483 mm (19") profile rails are depth adjustable and marked with the height unit
0.8 - 1.2 mm robust sheet steel with high load-bearing capacity, powder-coated
Cable entry possible at the rear, roof and bottom (pre-punched recesses)
Roof is prepared for placing a fan element (punched out supports)
Ventilation slots for active and passive ventilation
4 earthing points (bottom, side panel and front door) with protective cover
Installation depth for components min. - max.: 335 - 380 mm
Cabinet type: Wall mounted cabinet
Colour: light grey, RAL 7035
Depth: 450 mm
Front door: Glass door, single opening
Load capacity: 60 kg
Side panels: Both sides
Units: 9
Width: 600mm
IP protection class: IP20
Mounted: yes
