Product form

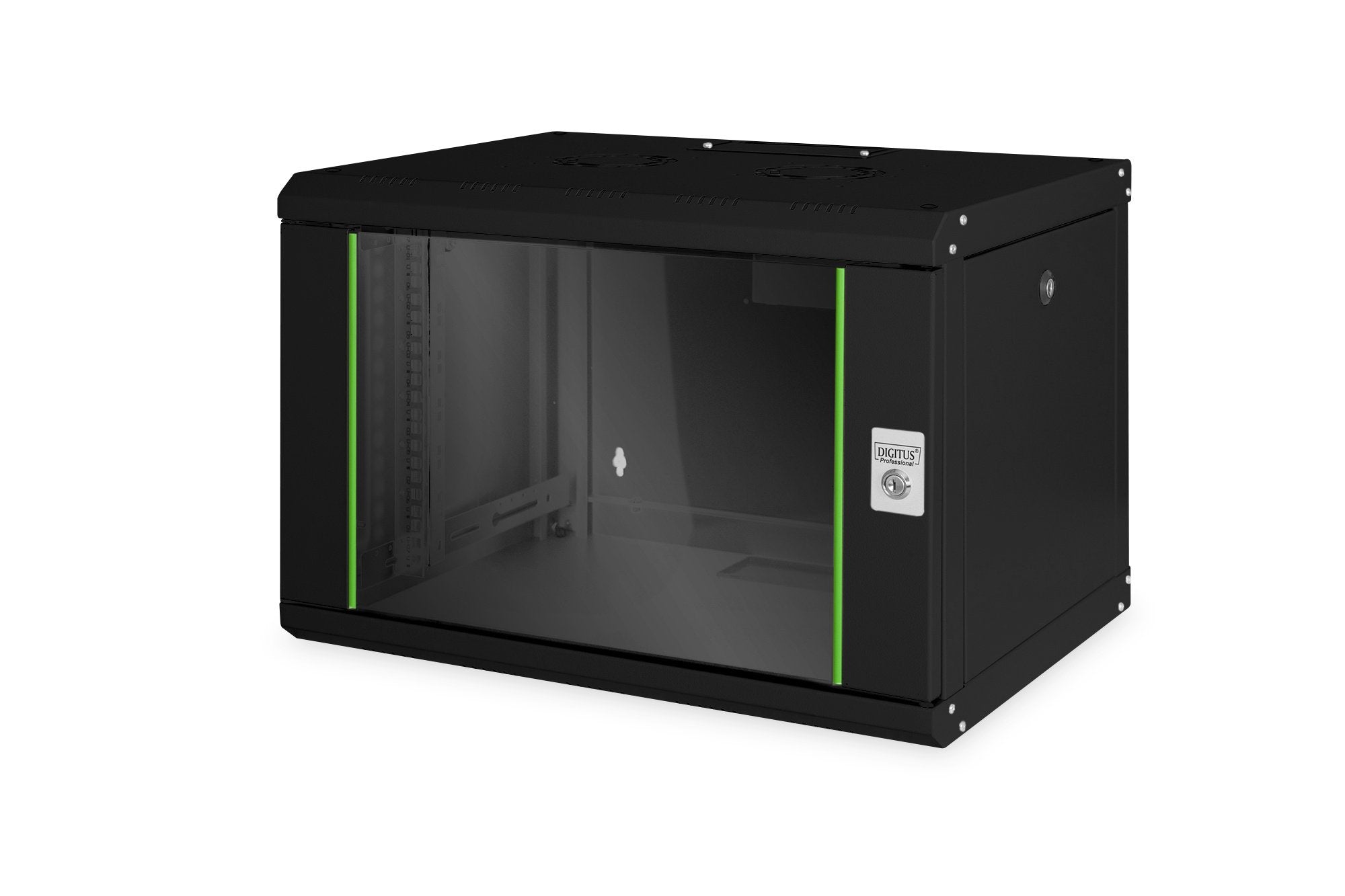

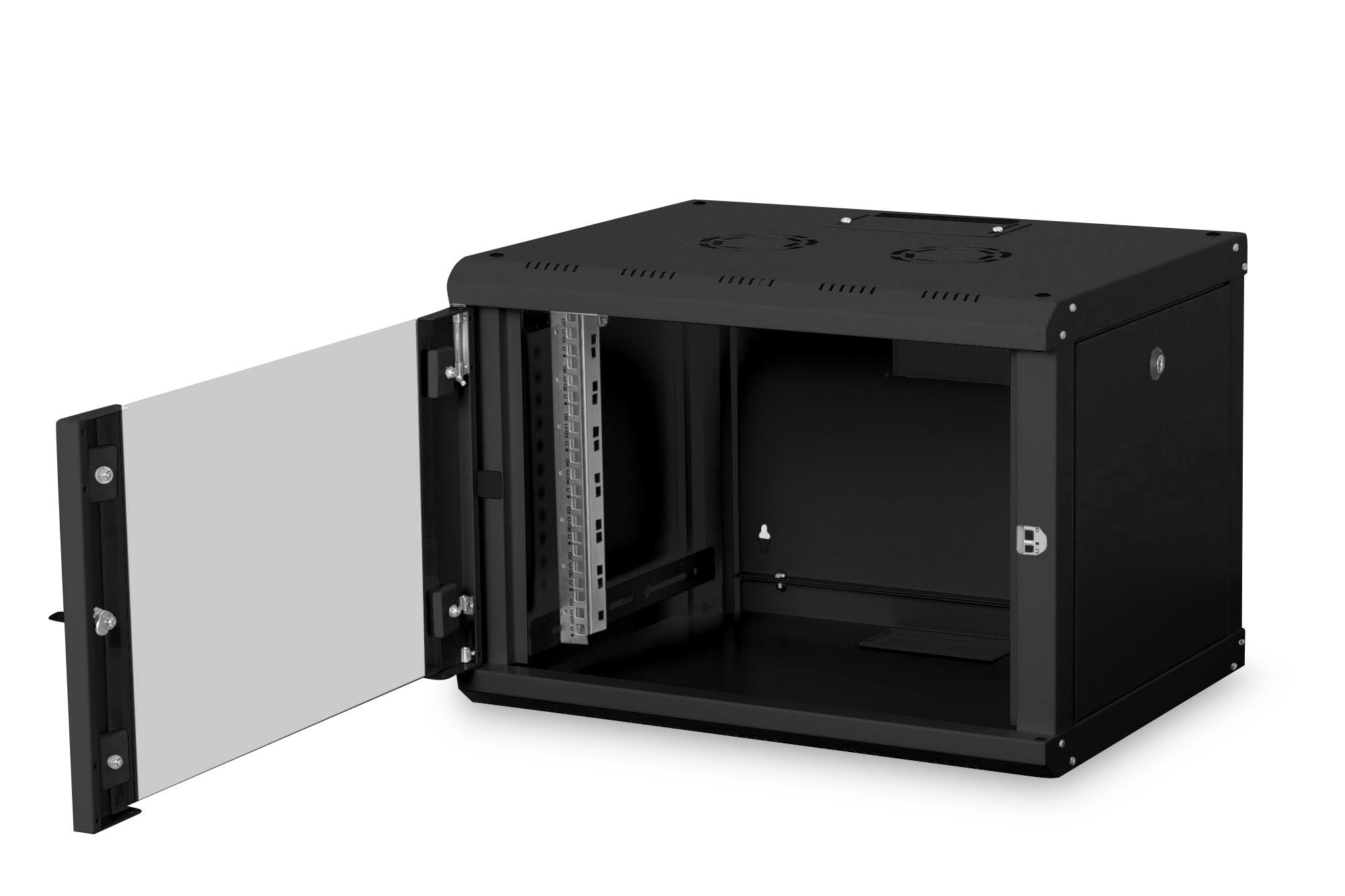

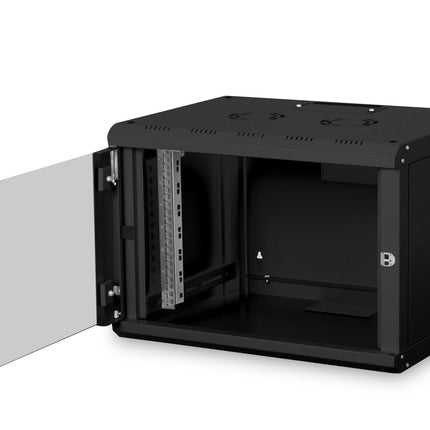

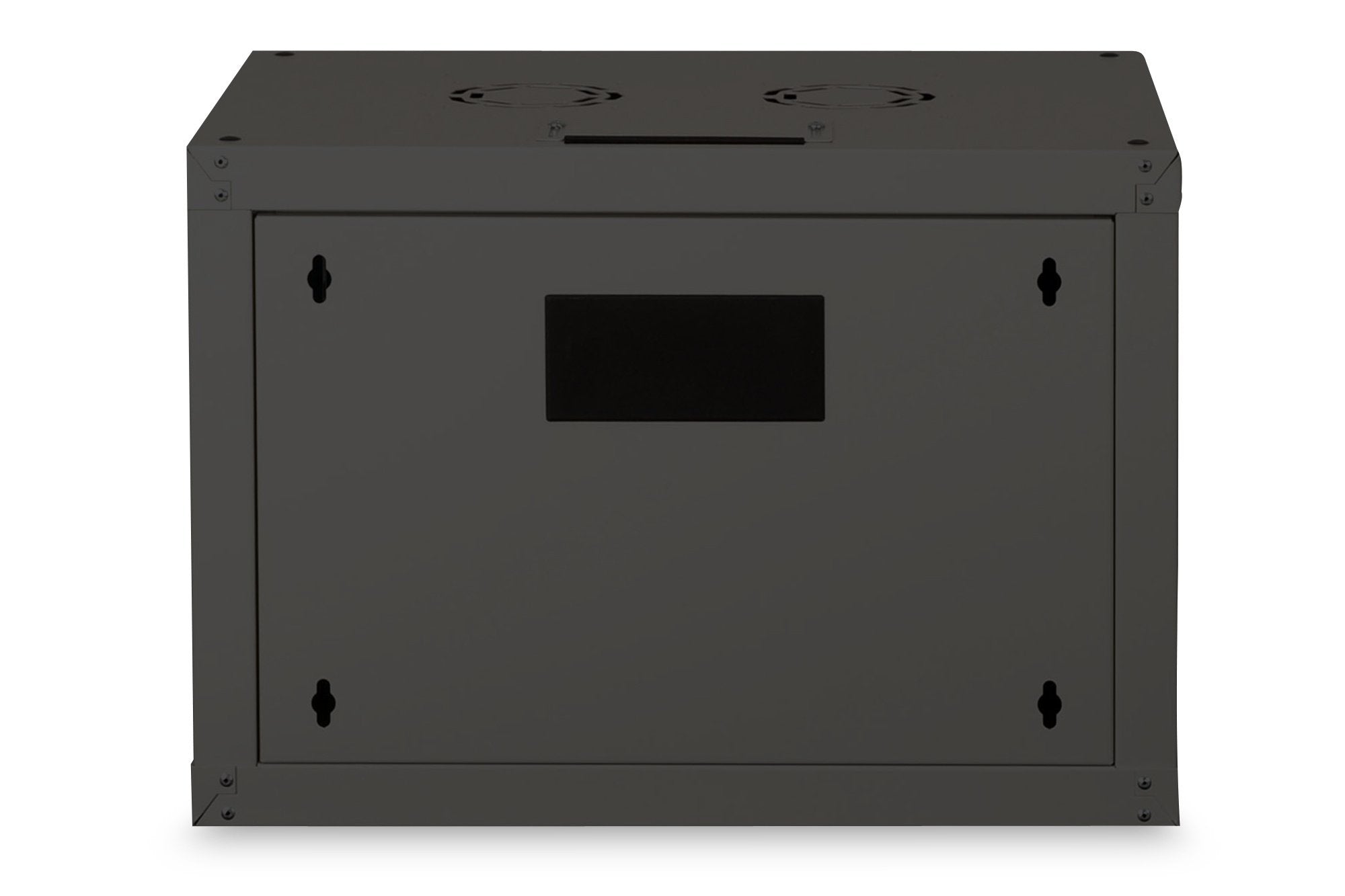

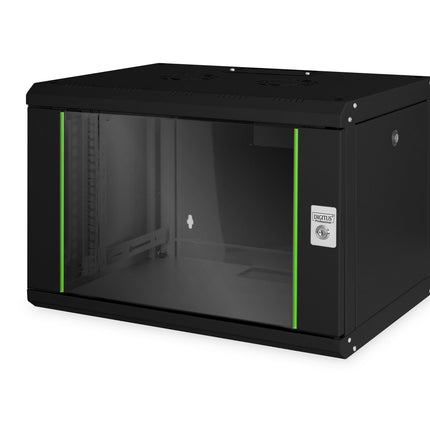

7U wall mounting cabinet, Unique 420x600x450 mm, color black (RAL 9005)

Name: 7U wall mounting cabinet, Unique 420x600x450 mm, color black (RAL 9005)
Brand: ASSMANN Electronic GmbH
SKU: DN-19-07-U-SW
Price: 166.97 EUR
Availability: InStock

166,97 Incl. VAT137,99 Excl. VAT

Delivered Tuesday

SKU: DN-19-07-U-SW

Need a larger quantity?

Request quote

✅ Ordered Monday to Friday before 9 PM = delivered tomorrow
✅ 15 years of expertise in network cables
✅ 250,000+ satisfied customers
✅ Pay up to 30 days later
✅ Shipping from €3.49
✅ 2-year warranty

Additional products

1U metal cable management bar with 5 brackets
11,76 Incl. VAT9,72 Excl. VAT
M6 cage nuts and rings 20 pcs zwart
6,66 Incl. VAT5,50 Excl. VAT
19 inch 1U shelf for racks from 400 mm depth 45x482x250 mm, up to 15 kg, black (RAL 9005)
33,87 Incl. VAT27,99 Excl. VAT
19 inch 2U shelf for racks from 450 mm depth 88.5x483x352 mm, up to 25 kg, black (RAL 9005)
33,64 Incl. VAT27,80 Excl. VAT
Cat6a Patch Panel 24 Port RJ45 Shielded
2 reviews
83,76 Incl. VAT69,22 Excl. VAT
M6 cage nuts and rings 50 pcs black
15,67 Incl. VAT12,95 Excl. VAT

TECHNICAL DETAILS

Safety class IP20
Lockable safety glass door with steel frame
210° door opening angle
1-point locking mechanism on the front door
Side panels are lockable and removable
483 mm (19") profile rails mounted at the front and rear inside the rack, galvanized
483 mm (19") profile rails are depth-adjustable and equipped with height unit markings
Maximum installation depth: 370 mm
Cable entry at the rear and bottom with plastic cover and top with sliding cover
Roof is prepared for fan units (punched out entrances)
Ventilation slots for active and passive ventilation and extraction
Multiple grounding points for rack components
Incl. mounting kit (screws, cage nuts, washers)
Rack is fully assembled
Installation depth equipment min.-max.: 305-370 mm
Cabinet type: Wall mounted cabinet
Colour: black, RAL 9005
Depth: 450 mm
Front door: Glass door, single opening
Load capacity: 100 kg
Side panels: Both sides
Units: 7
Width: 600mm
IP protection class: IP20
Mounted: yes
