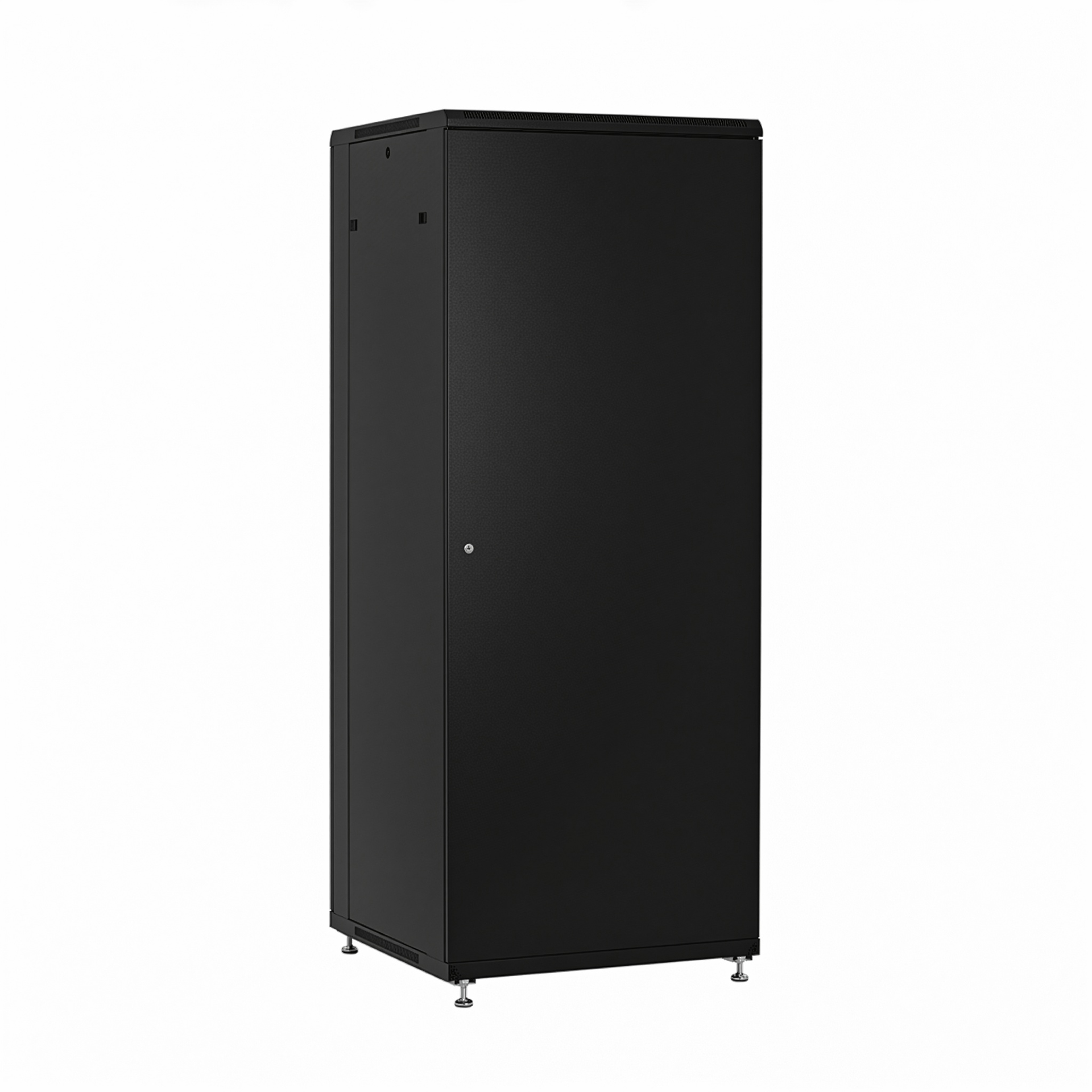

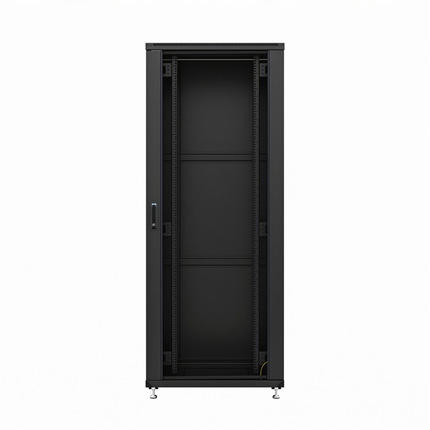

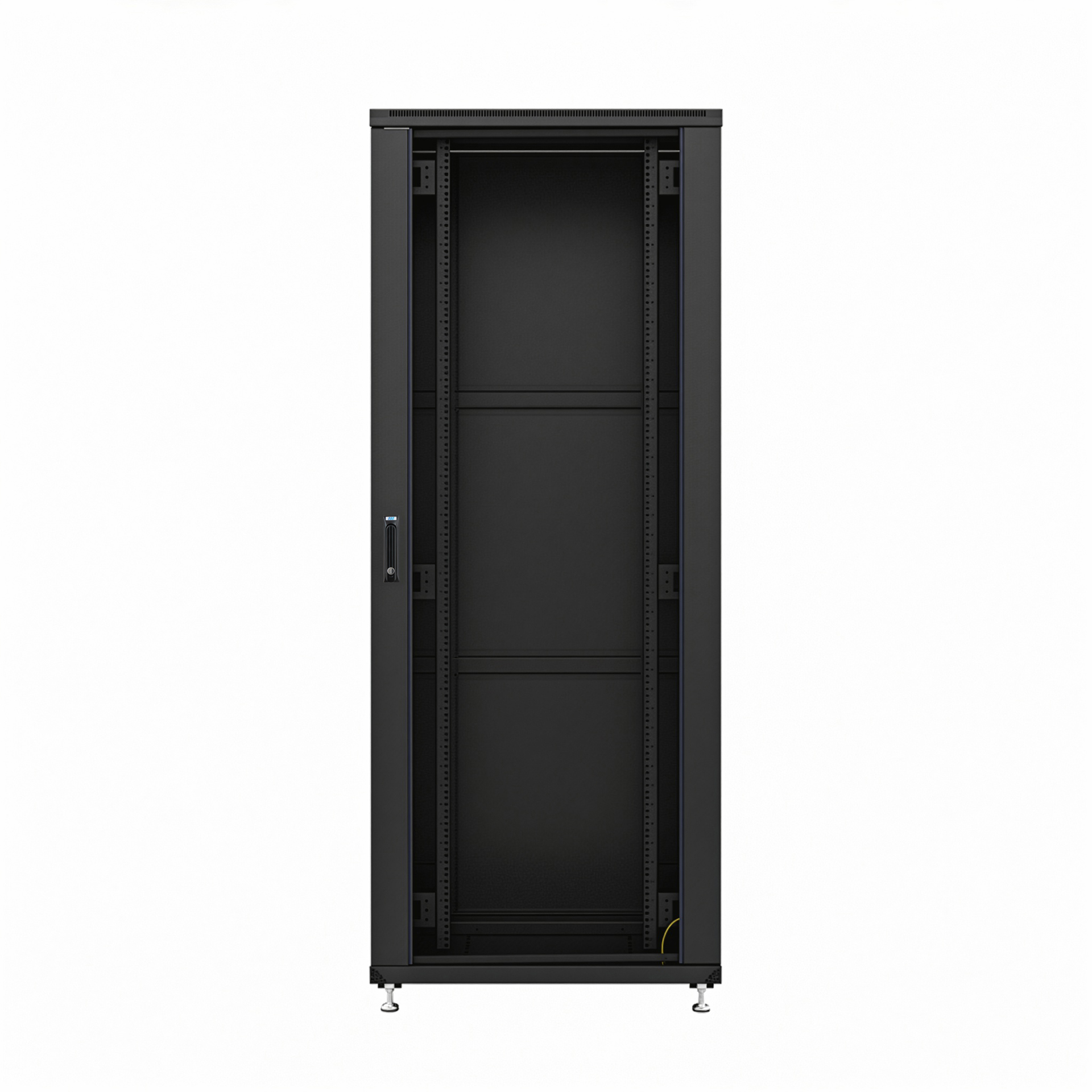

24U Server Cabinet 600x600x1200 mm (WxDxH) black

19" Network Cabinet 24U 600x600 – Glass Front Door / Steel Rear Door (RAL9005)

This robust and fully pre-assembled 19-inch network cabinet (24U) is the ideal solution for the safe, organized, and efficient storage of your IT and network equipment. The cabinet is finished in stylish black (RAL9005) and combines a sturdy sheet steel frame with an elegant glass front door. With an impressive maximum load capacity of 800 kg and flexible installation options, this server cabinet is perfect for both small and medium-sized server rooms.

Key Benefits & Features

• Ready for immediate use: The cabinet is delivered fully pre-assembled on a disposable pallet.

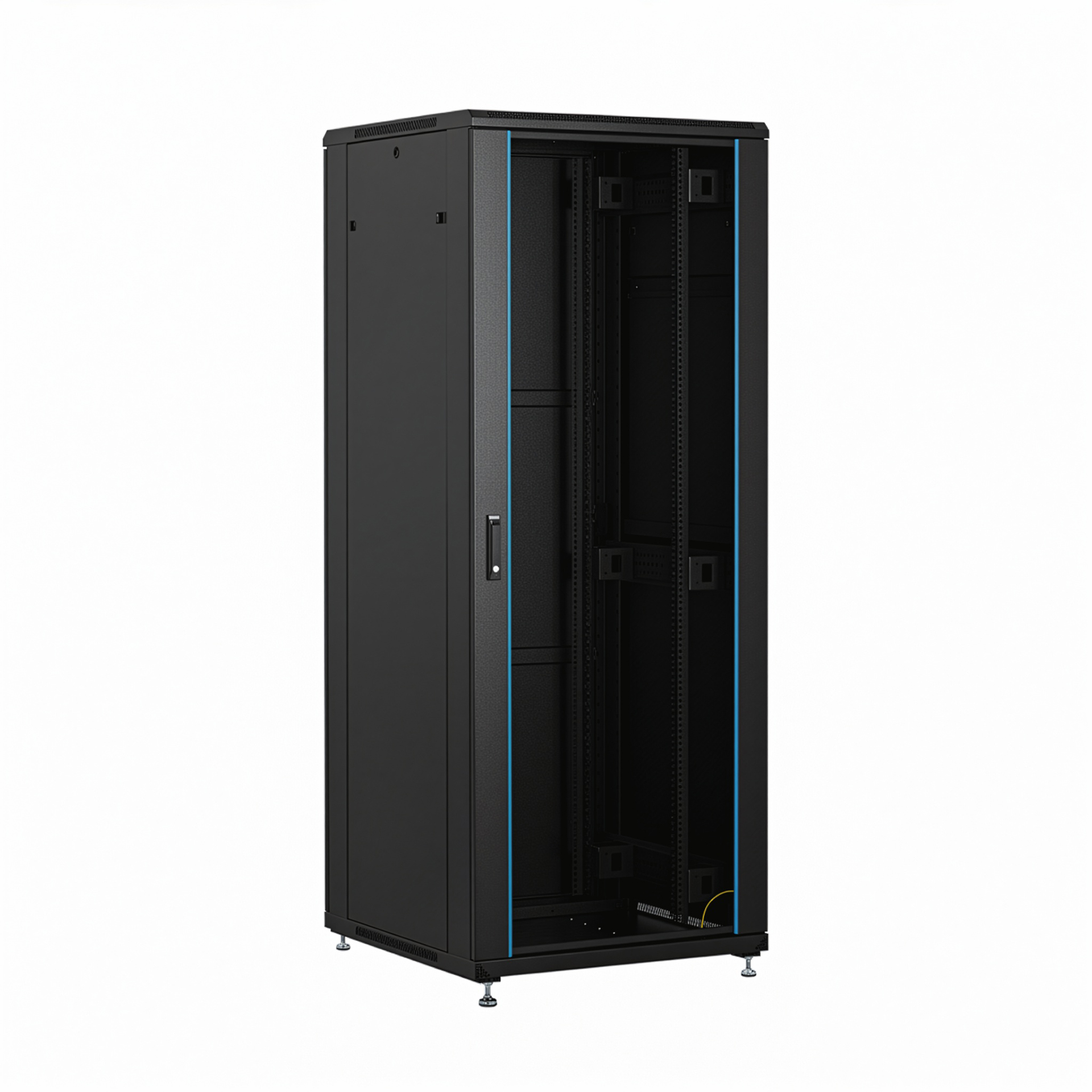

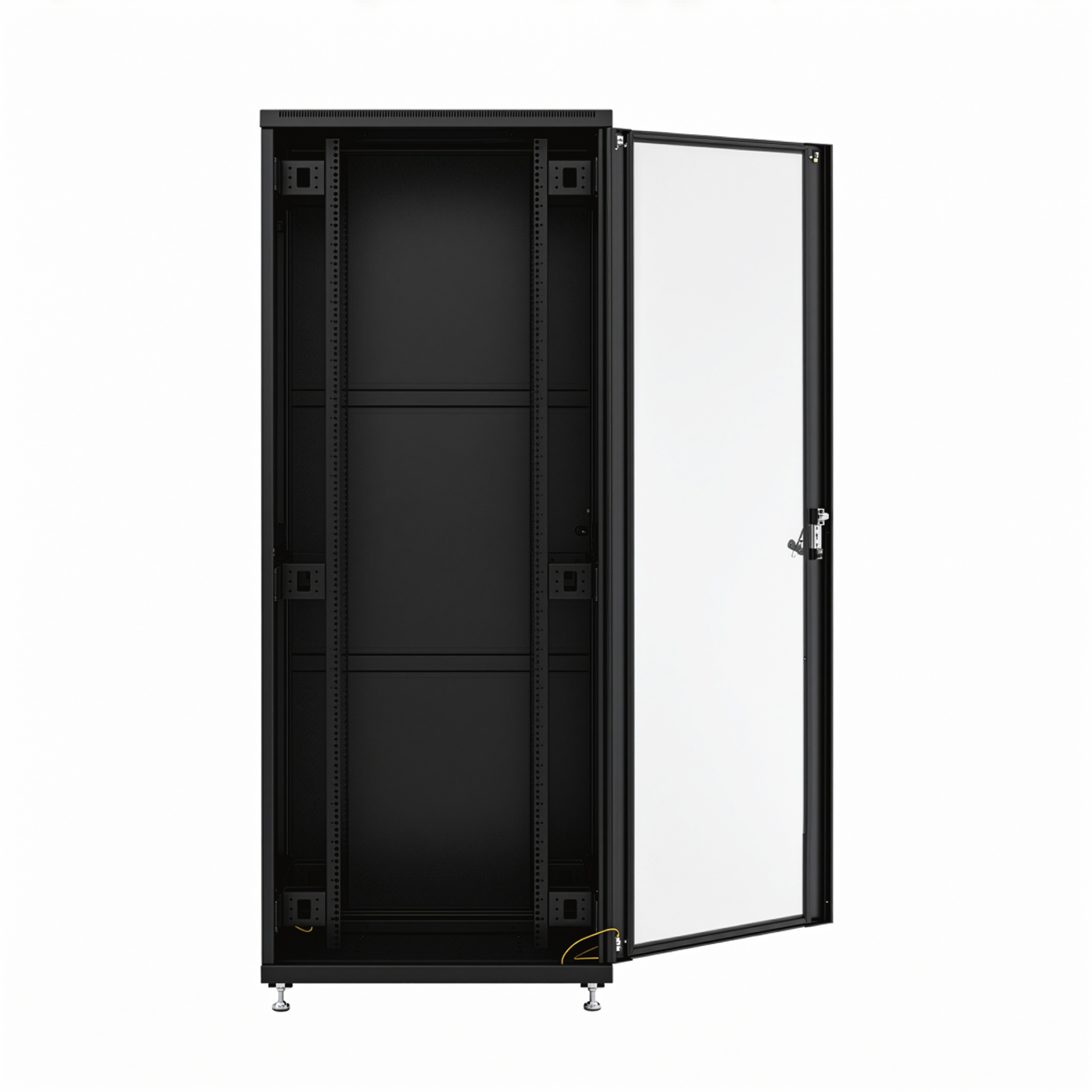

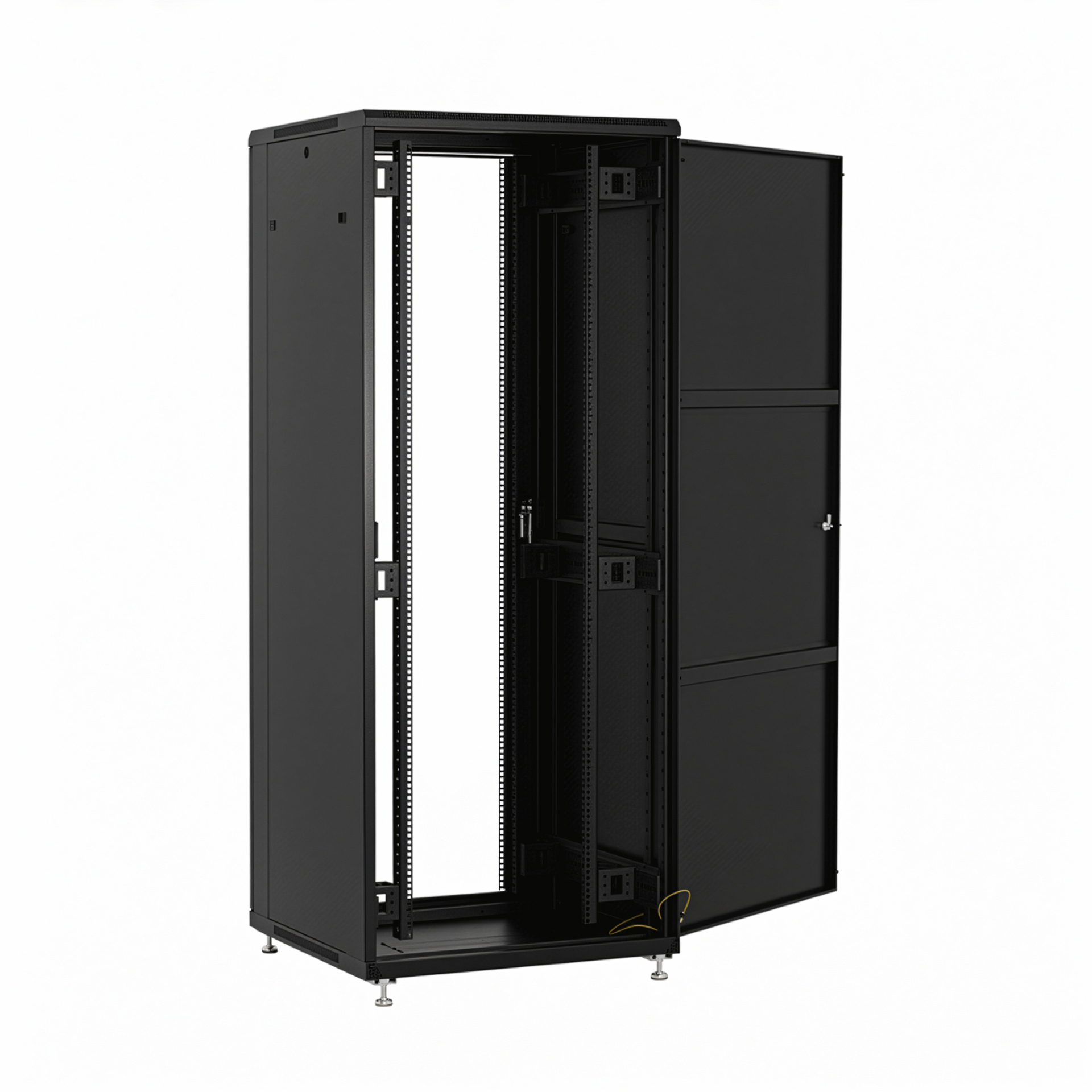

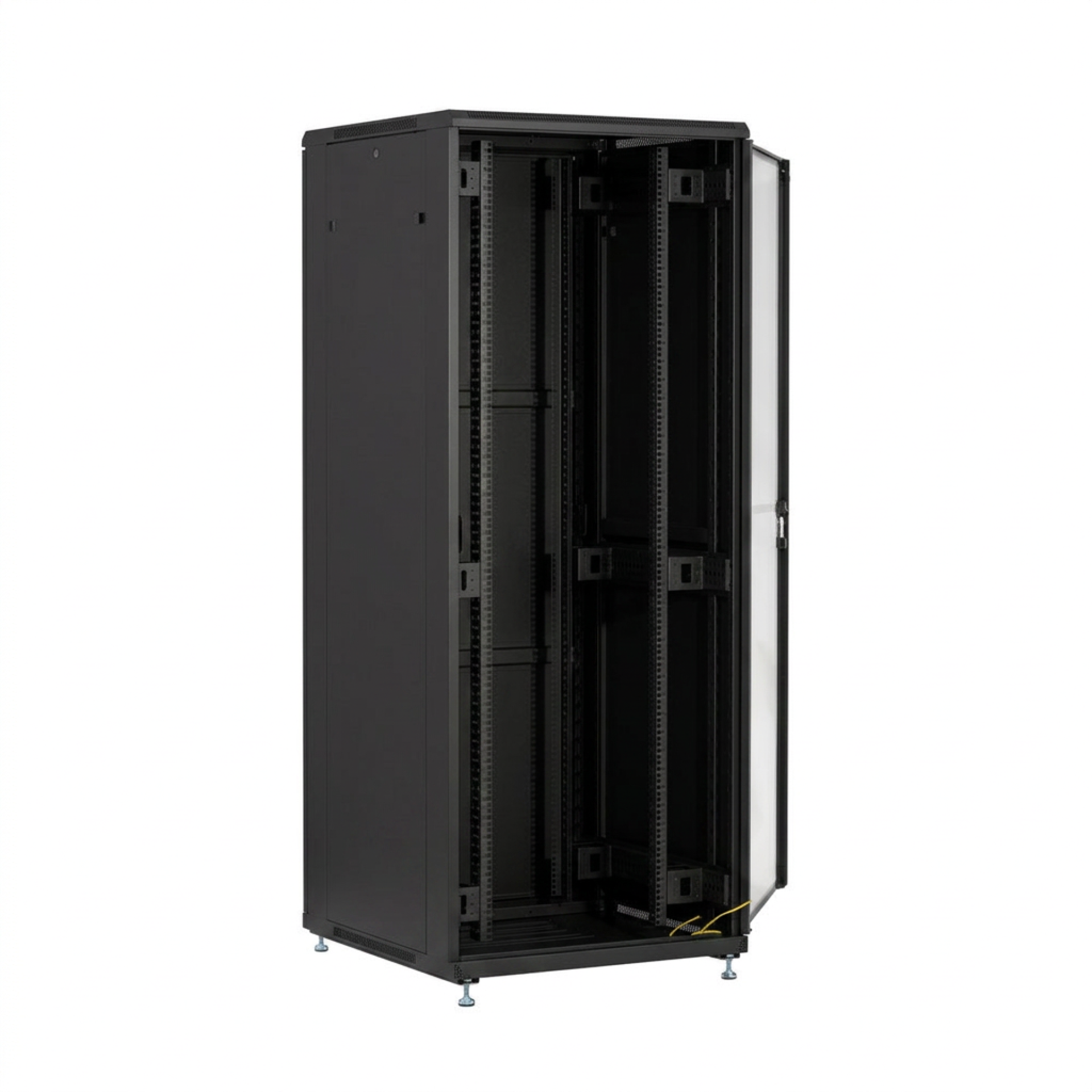

• Optimal accessibility: Equipped with a glass front door (5 mm safety glass) and a steel rear door. The doors have an opening angle of more than 180°, and the hinge direction (left or right) can be adjusted as desired.

• Securely locked: Front and rear doors, as well as the removable side panels (with quick-release fasteners), are equipped with keyed-alike locks.

• Flexible setup: Features 4 x 19" mounting profiles (2 front, 2 rear) with convenient U-numbering. The profiles are depth-adjustable in 20 mm increments.

• Smart cable management & cooling: Both the top and bottom are equipped with cable entry openings (386 x 69 mm) with bolted cover plates. The cabinet is passively ventilated and prepared for the installation of an active 4-way fan unit.

• Connectable design: Multiple cabinets can be easily connected to each other (with or without side panels) using the optional baying kit.

Technical Specifications

Package Contents

Upon delivery of this network cabinet, you will receive the following included accessories, so you can get started right away:

• 1x 19" Network Cabinet (24U)

• 4x Leveling feet

• 1x Set of cage nuts (20 pieces)

• Corresponding keys for the doors and side panels
