Product form

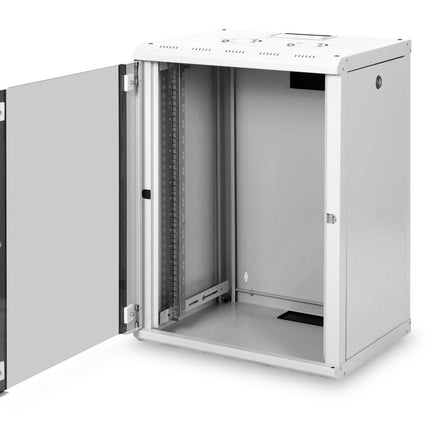

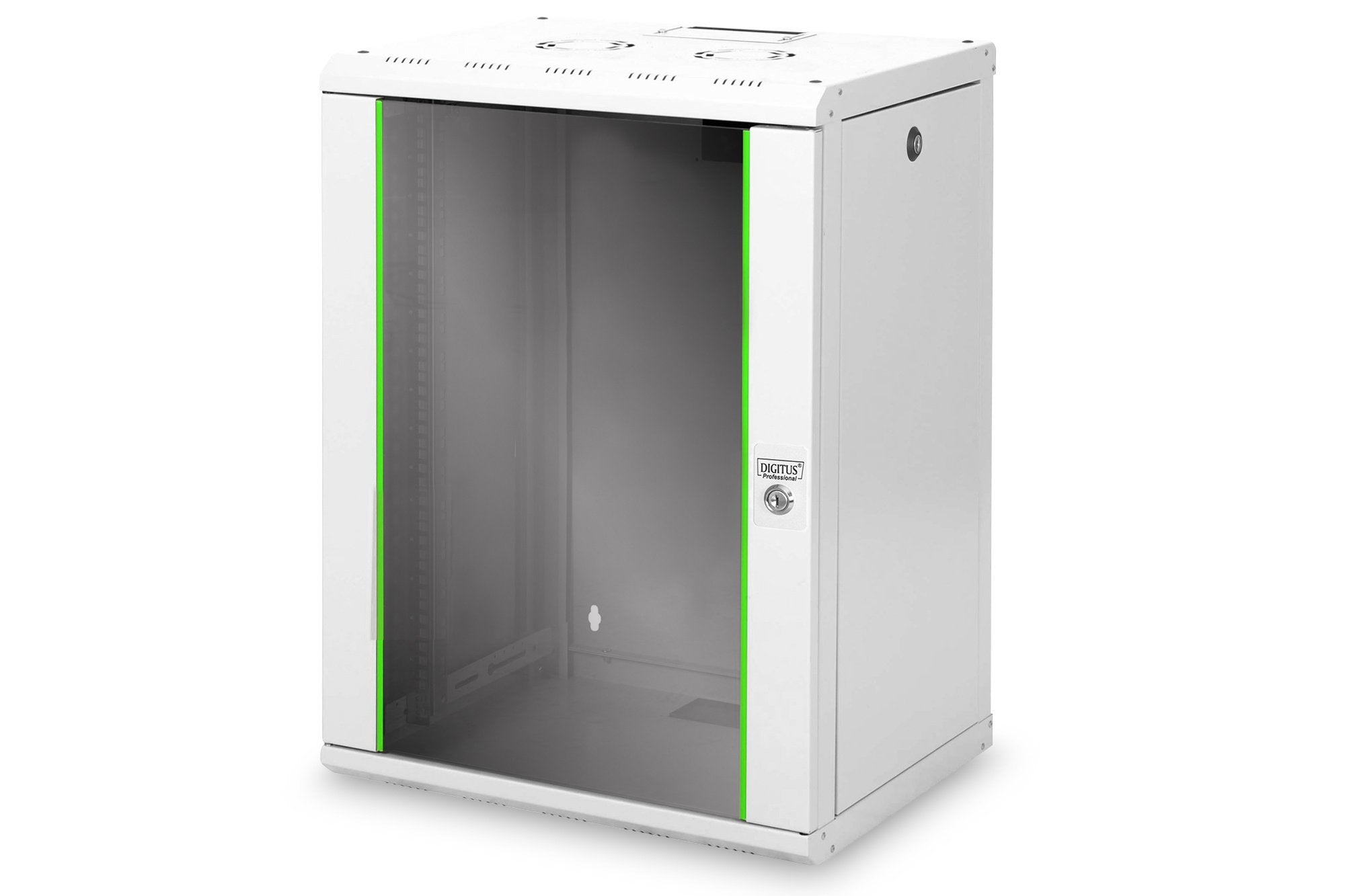

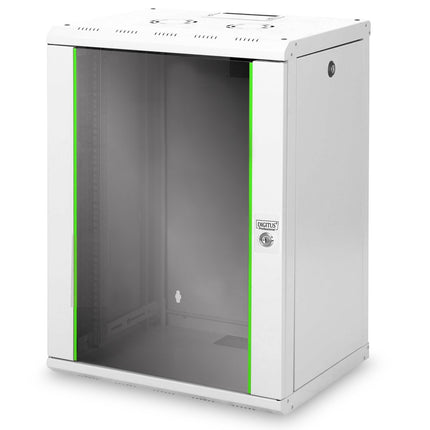

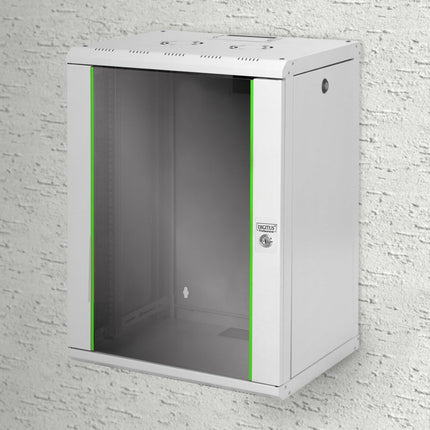

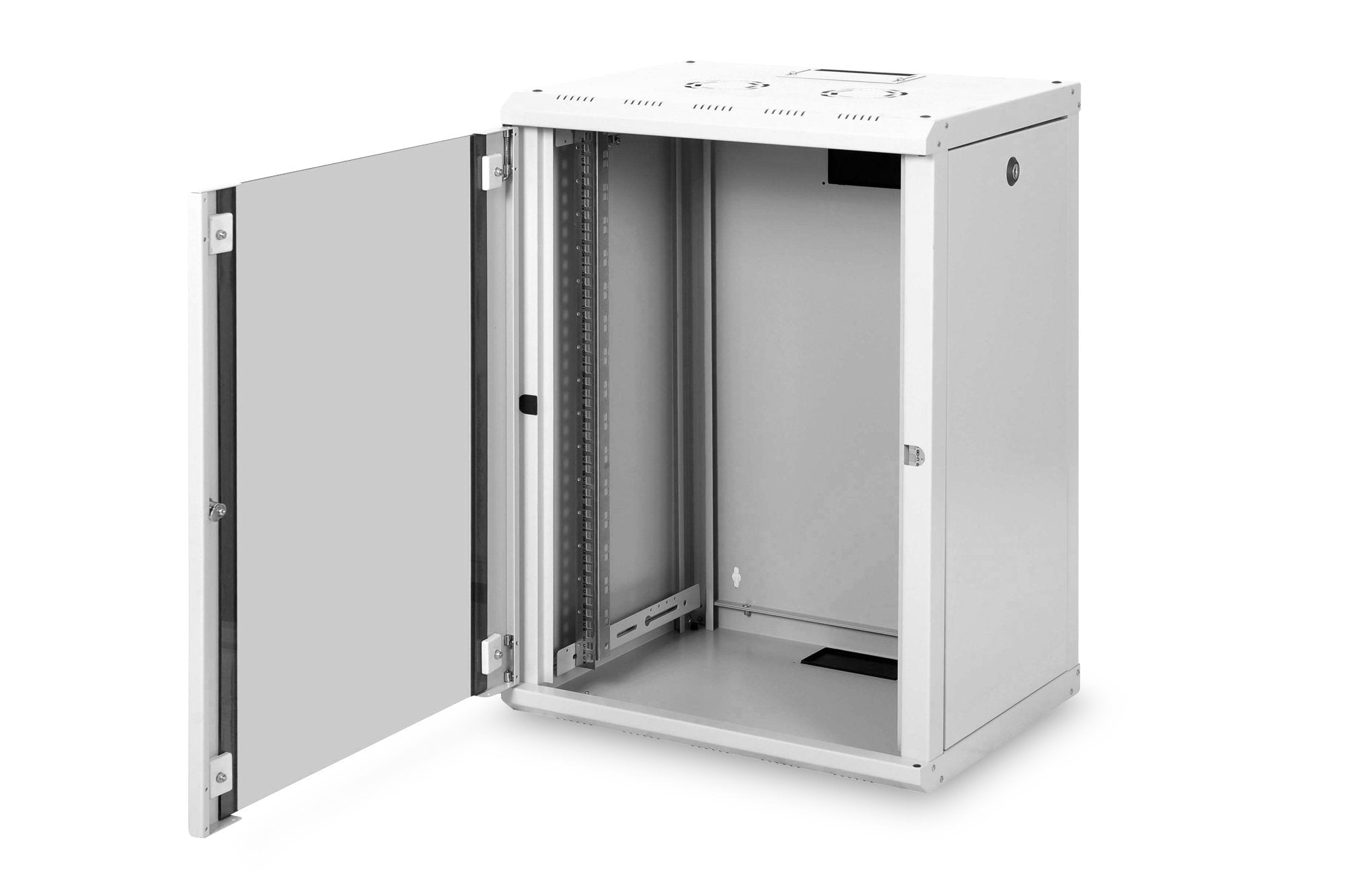

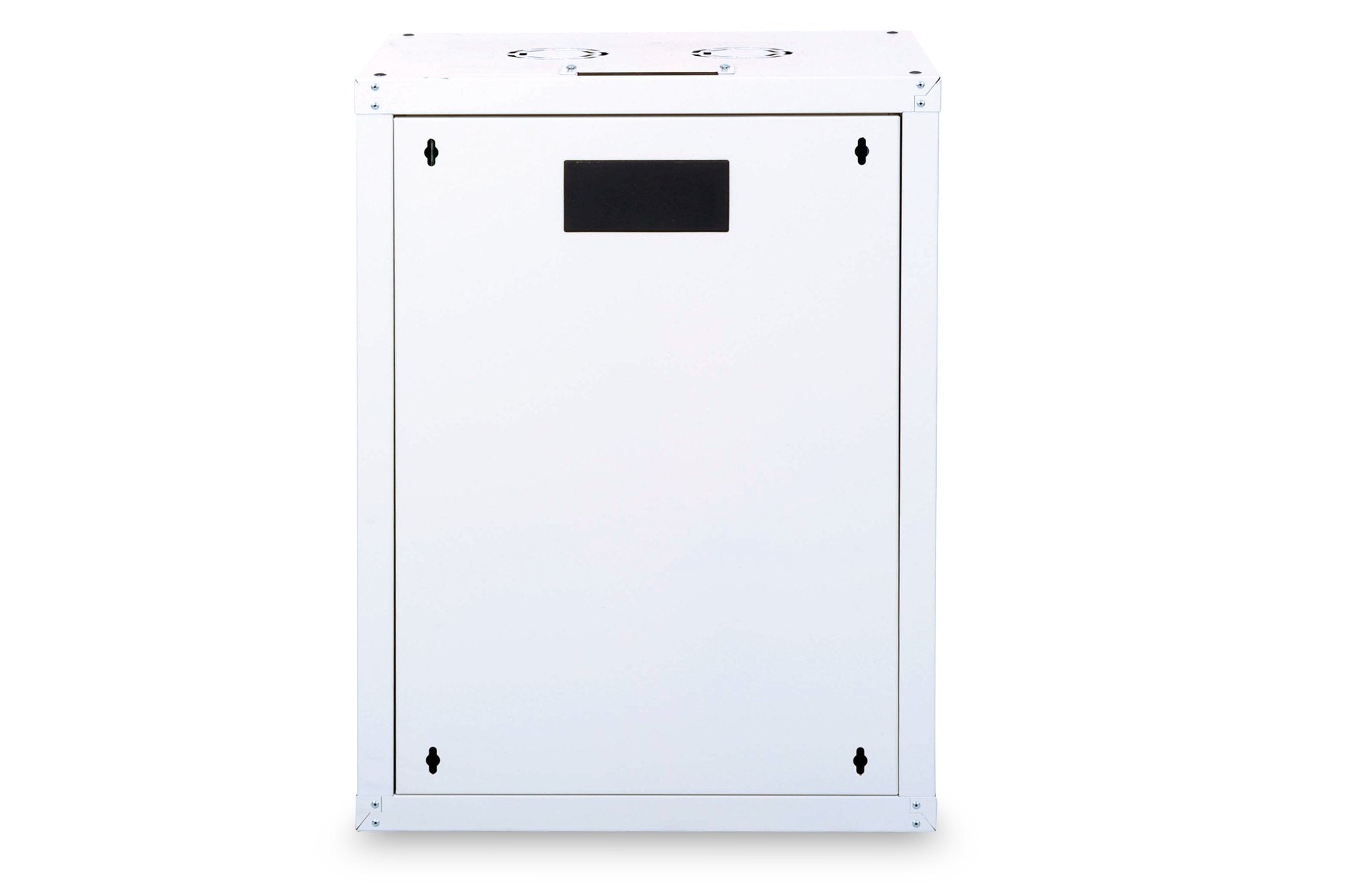

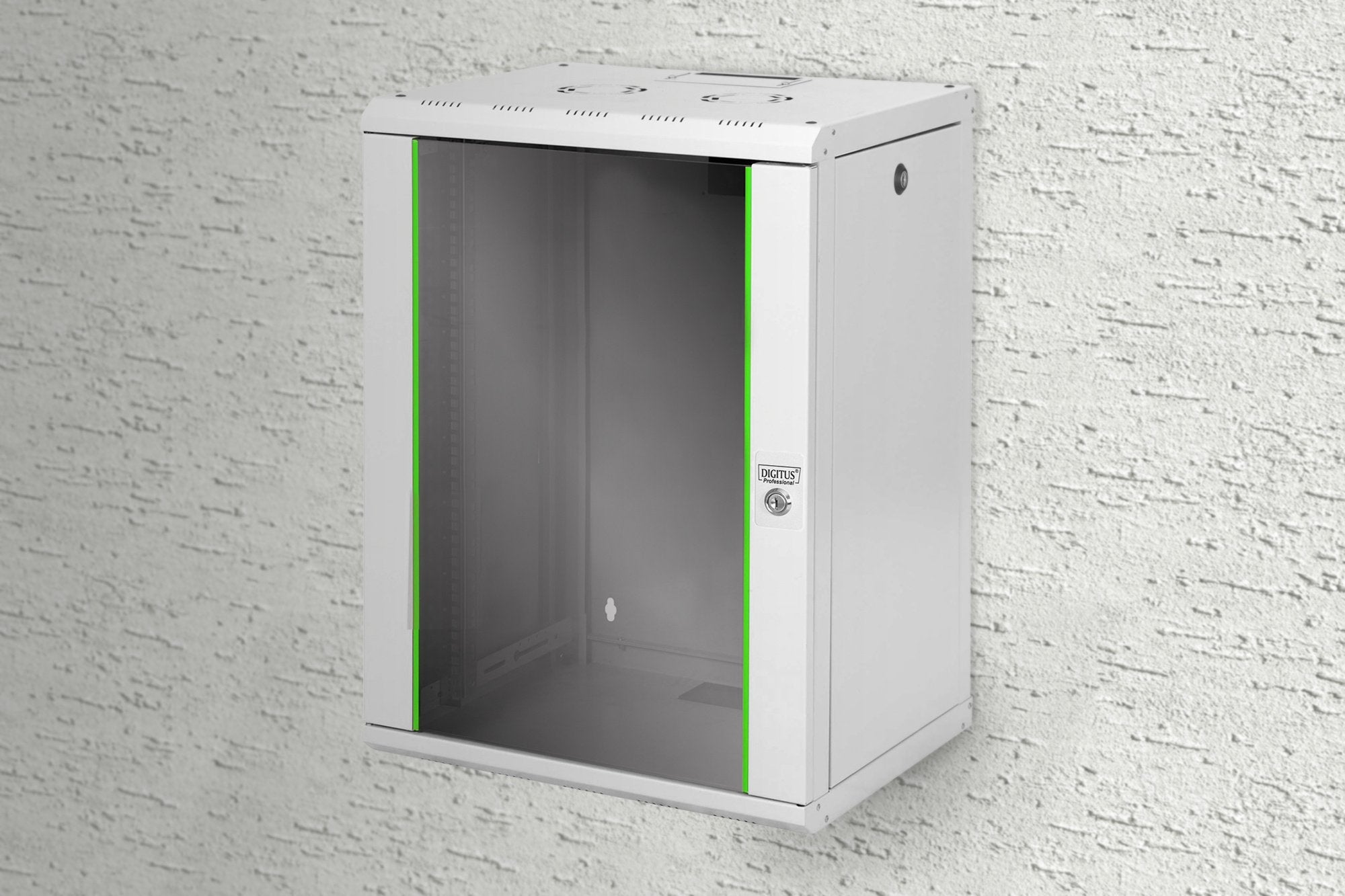

16U wall cabinet, Unique 820x600x450 mm, color gray (RAL 7035)

Name: 16U wall cabinet, Unique 820x600x450 mm, color gray (RAL 7035)
Brand: ASSMANN Electronic GmbH
SKU: DN-19-16-U
Price: 309.76 EUR

309,76 Incl. VAT256,00 Excl. VAT

Entrega en 8 días laborables

SKU: DN-19-16-U

Need a larger quantity?

Request quote

✅ Ordered Monday to Friday before 9 PM = delivered tomorrow
✅ 15 years of expertise in network cables
✅ 250,000+ satisfied customers
✅ Pay up to 30 days later
✅ Shipping from €3.49
✅ 2-year warranty

TECHNICAL DETAILS

Safety class IP20
Lockable safety glass door with steel frame
210° door opening angle
1-point locking mechanism on the front door
Side panels are lockable and removable
483 mm (19") profile rails mounted at the front and rear inside the rack, galvanized
483 mm (19") profile rails are depth-adjustable and equipped with height unit markings
Maximum installation depth: 450 mm
Cable entry at the rear and bottom with plastic cover and top with sliding cover
Roof is prepared for fan units (punched out entrances)
Ventilation slots for active and passive ventilation and extraction
Multiple grounding points for rack components
Incl. mounting kit (screws, cage nuts, washers)
Rack is fully assembled
Installation depth equipment min.-max.: 320-450 mm
Cabinet type: Wall mounted cabinet
Colour: black, RAL 9005
Depth: 600 mm
Front door: Glass door, single opening
Load capacity: 100 kg
Side panels: Both sides
Units: 12
Width: 600mm
IP protection class: IP20
Mounted: yes
