Product form

16U wall cabinet, outdoor, IP55 891x600x600 mm, color gray (RAL 7035)

Name: 16U wall cabinet, outdoor, IP55 891x600x600 mm, color gray (RAL 7035)
Brand: ASSMANN Electronic GmbH
SKU: DN-19-16U-6/6-I-OD
Price: 762.3 EUR

762,30 Incl. VAT630,00 Excl. VAT

Entrega en 8 días laborables

SKU: DN-19-16U-6/6-I-OD

Need a larger quantity?

Request quote

✅ Ordered Monday to Friday before 9 PM = delivered tomorrow
✅ 15 years of expertise in network cables
✅ 250,000+ satisfied customers
✅ Pay up to 30 days later
✅ Shipping from €3.49
✅ 2-year warranty

Additional products

1U metal cable management bar with 5 brackets
11,76 Incl. VAT9,72 Excl. VAT
SPD PDU with 7 EU sockets for 19 inch server cabinets
53,23 Incl. VAT43,99 Excl. VAT -2% -2%
52,33 Incl. VAT43,25 Excl. VAT
19 Inch 1U shelf for racks from 600 mm depth 44x482x400 mm, up to 15 kg, gray (RAL 7035)
27,95 Incl. VAT23,10 Excl. VAT
Cat6a Patch Panel 24 Port RJ45 Shielded
2 reviews
83,76 Incl. VAT69,22 Excl. VAT

Technical details

Safety class IP 55
Lockable steel front door with rotating handle
140° door opening angle
3-point locking mechanism on the front door
Front door with earth conductor and two welded reinforcement bars in U-shape and sealing system

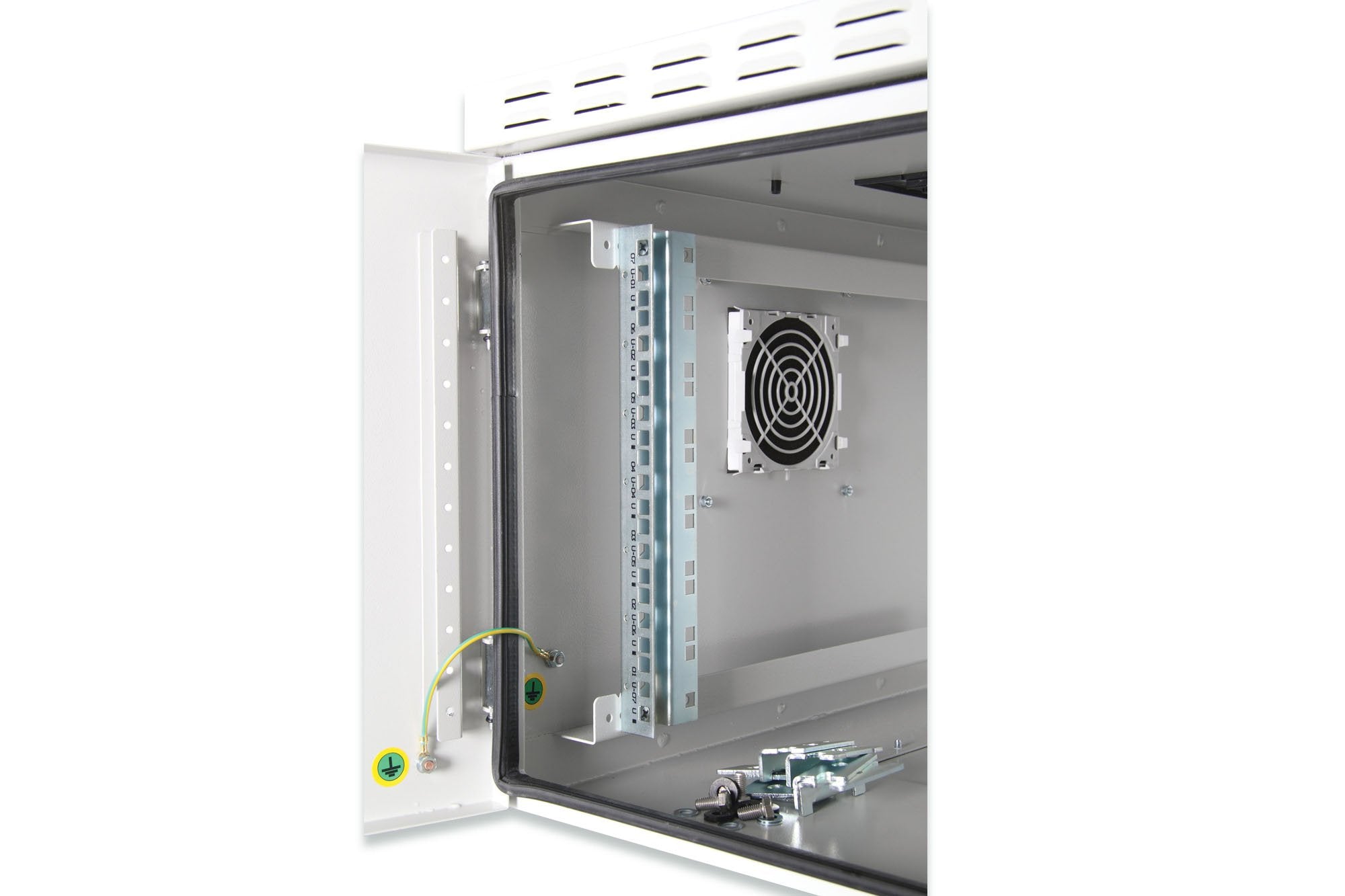

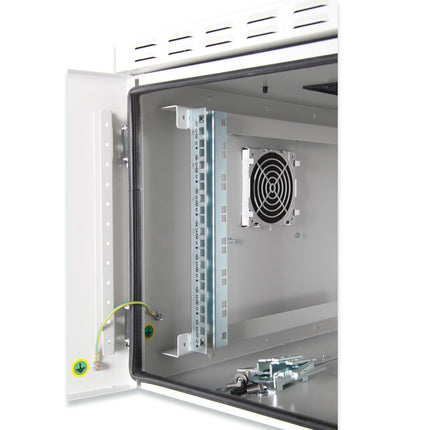

483 mm (19") profile rails mounted on the front inside the cabinet, galvanized
483 mm (19") profile rails are depth-adjustable and equipped with height unit markings
1.5 mm thick sheet steel with a high load-bearing capacity, powder-coated
Single welded housing for increased strength

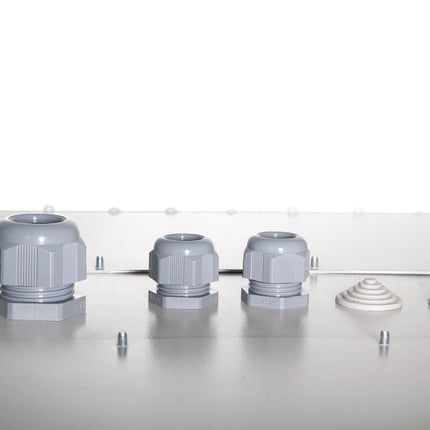

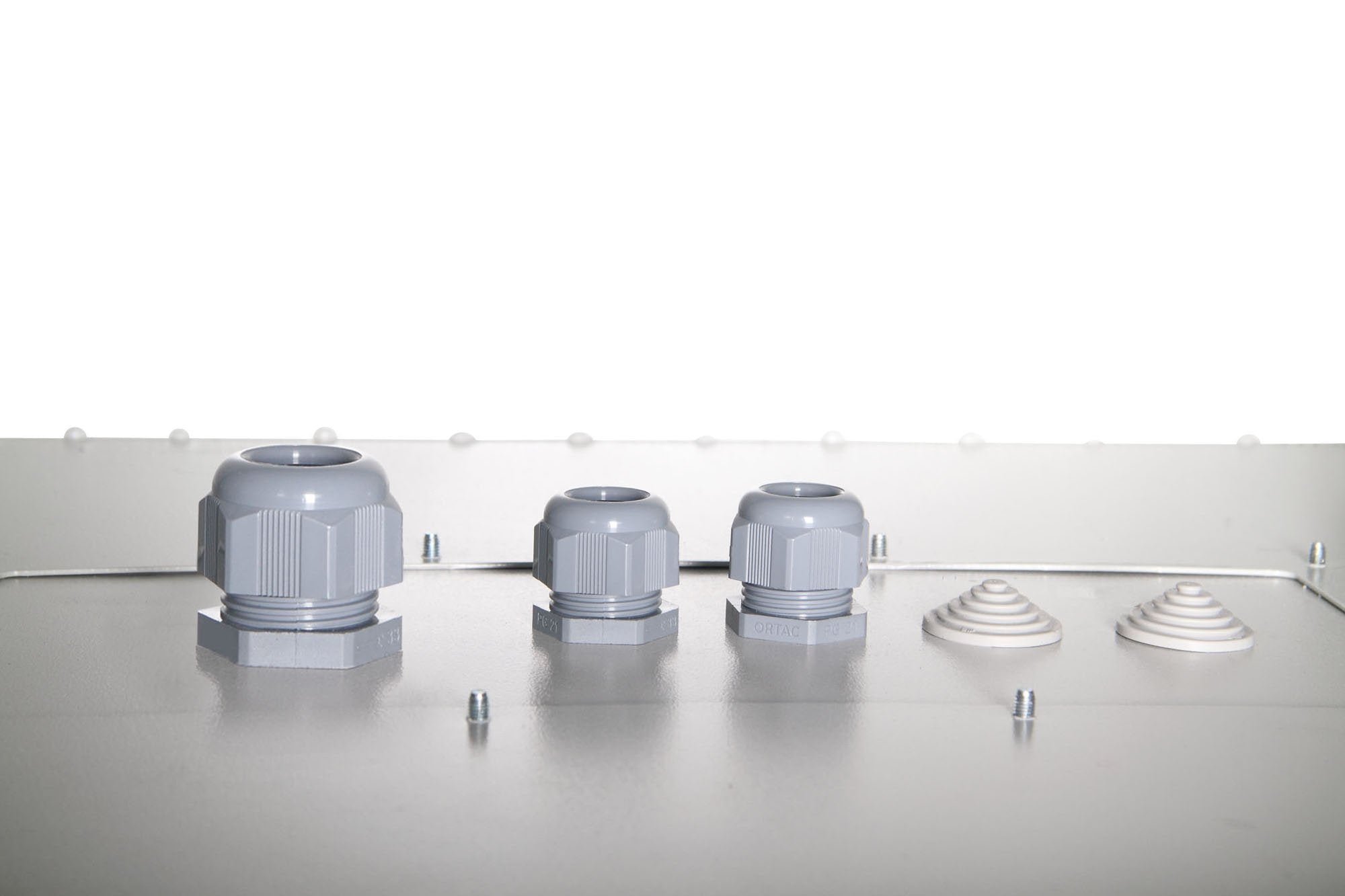

Cable entries in the base: 2x M32, 1x M63, 2x PVC blanking cap (with diameter of 28 mm)
Roof canopy provides protection for suitable fan units and provides ventilation and warm air
Integrated air ventilation inlets ensure the supply of fresh air
incl. 4 mounting brackets, 3 mm thick, as well as suitable screws and washers, for wall mounting
Installation depth equipment min.-max.: 142-500 mm
Distance from installation holes to wall mounting (H x W) in mm: 698 x 550
Cabinet type: Wall cabinet, outdoor
Colour: light grey, RAL 7035
Depth: 600 mm
Front door: Steel door, closed, single opening
Load capacity: 100 kg
Units: 16
Width: 600mm
IP protection class: IP55
Mounted: yes
