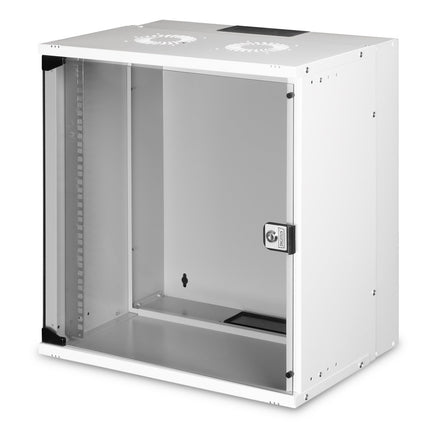

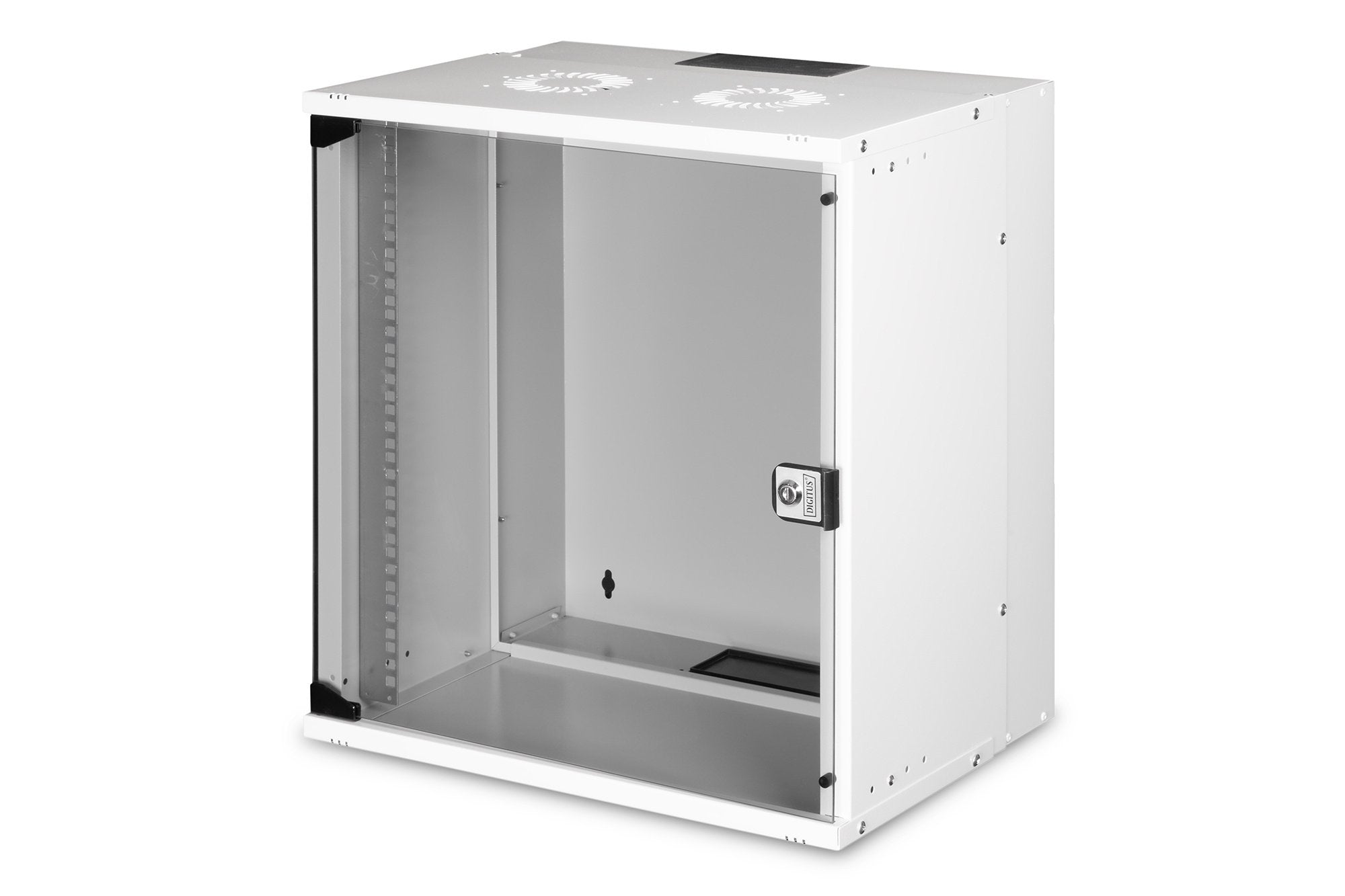

12U wall mounting cabinet, SOHO PRO 595 x 540 x 400 mm, gray

Name: 12U wall mounting cabinet, SOHO PRO 595 x 540 x 400 mm, gray
Brand: ASSMANN Electronic GmbH
SKU: DN-49206
Price: 119.78 EUR

119,78 Incl. VAT98,99 Excl. VAT

Entrega en 8 días laborables

SKU: DN-49206

Need a larger quantity?

Request quote

✅ Ordered Monday to Friday before 9 PM = delivered tomorrow
✅ 15 years of expertise in network cables
✅ 250,000+ satisfied customers
✅ Pay up to 30 days later
✅ Shipping from €3.49
✅ 2-year warranty

Additional products

19 Inch 1U shelf for racks from 400 mm depth 45x482x250 mm, up to 15 kg, gray (RAL 7035)
24,20 Incl. VAT20,00 Excl. VAT

Technical details

Protection class IP20

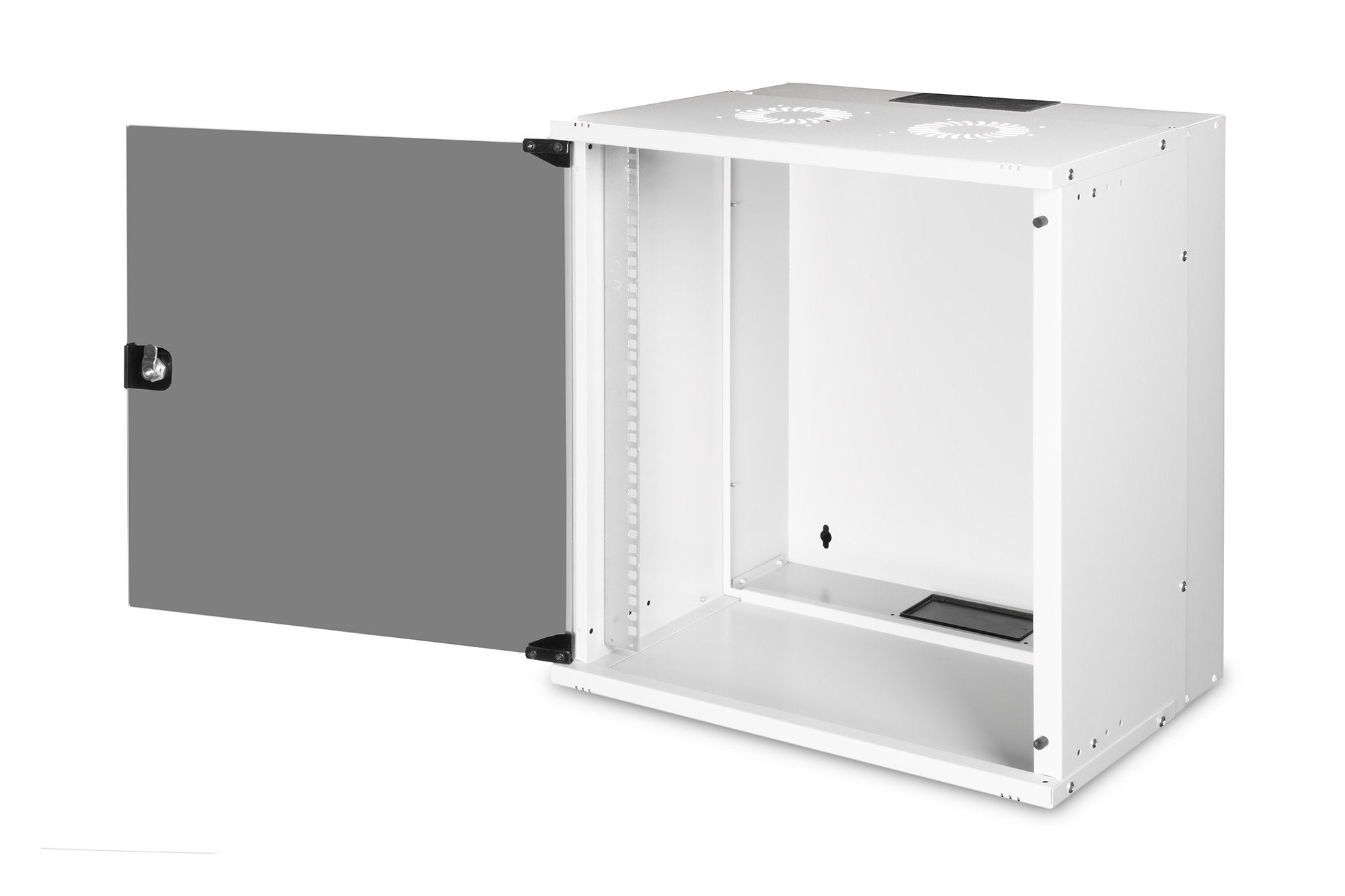

Lockable safety glass door
200° door opening angle
1-point locking on the front door
483 mm (19") profile rails mounted at the front in the housing, galvanized
483 mm (19") profile rails are depth adjustable
1.1 - 1.5 thick sheet steel with a high load-bearing capacity, powder-coated
Cable entry with plastic cover in the roof and floor
Ventilation slots for active and passive ventilation
Installation depth for components max.: 327 mm
Product dimensions (H x W x D): 595 x 540 x 400 mm
Cabinet type: Wall mounted cabinet
Colour: light grey, RAL 7035
Depth: 400 mm
Front door: Glass door, single opening
Load capacity: 60 kg
Side panels: Both sides
Units: 12
Width: 540mm
IP protection class: IP20
Mounted: no

Package contents

Mounting kit (screws, cage nuts, washers)
2x key
1x QIG
