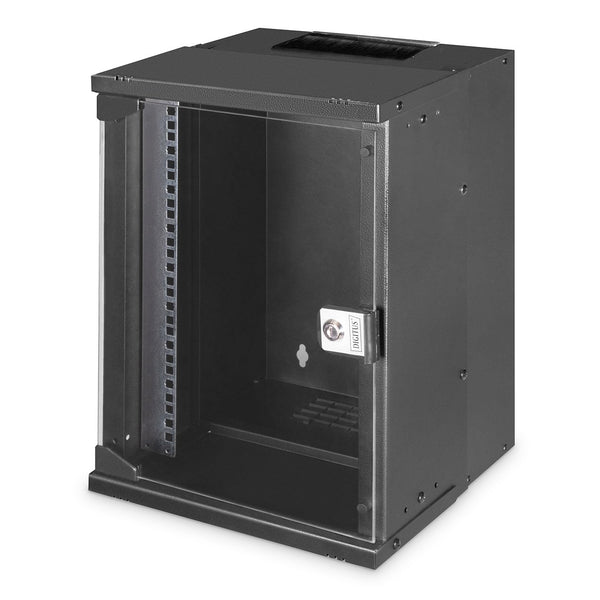

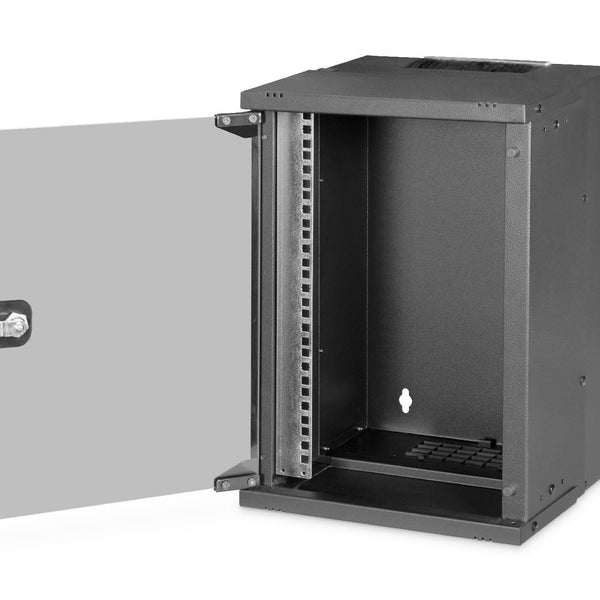

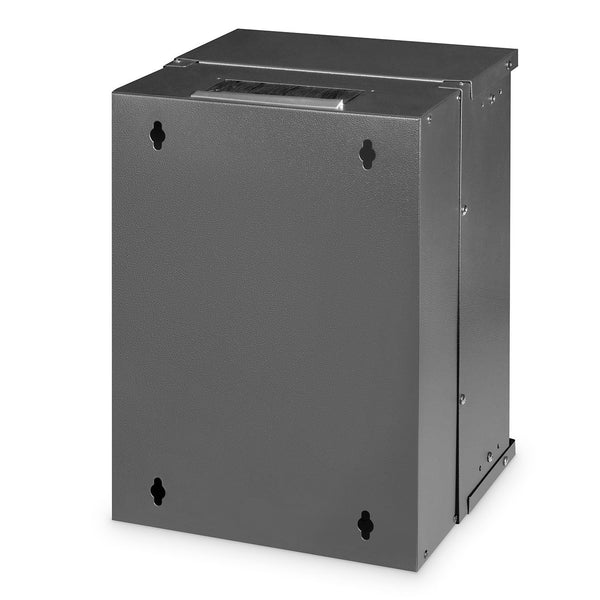

10" 9U wall mounting cabinet, SOHO PRO 460 x 315 x 300 mm, black
-
Product description
TECHNICAL DETAILS
- Protection class IP20
- Lockable safety glass door
- 200° door opening angle
- 1-point locking on the front door
- 254 mm (10") profile rails mounted at the front in the housing, galvanized
- 254 mm (10") profile rails are depth adjustable
- 1.1 - 1.5 thick sheet steel with a high load-bearing capacity, powder-coated

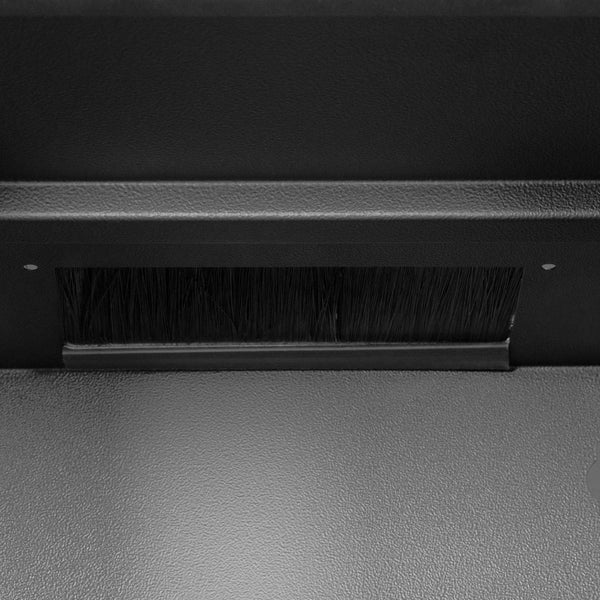

- Cable entry with brush strip in the roof and with plastic cover in the floor
- Ventilation slots for active and passive ventilation
- Installation depth for components max.: 254 mm
- Product dimensions (H x W x D): 460 x 315 x 300 mm
- Packaging dimensions (H x W x D): 175 x 360 x 475 mm
- Weight (net/gross): 6.44/7.04 kg
- Cabinet type: Wall mounted cabinet
- Colour: black, RAL 9005
- Front door: Glass door, single opening
- Load capacity: 30 kg
- Side panels: Both sides
- Units: 9
- Width: 316mm
- IP protection class: IP20
- Mounted: yes
PACKAGE CONTENTS
- Mounting kit (screws, cage nuts, washers)
- 2x key
- 1x QIG
